PML with structural mechanics

Posted 31.07.2012, 11:44 GMT-4 RF & Microwave Engineering, Wave Optics Version 4.3 3 Replies

Rachel Westwood
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

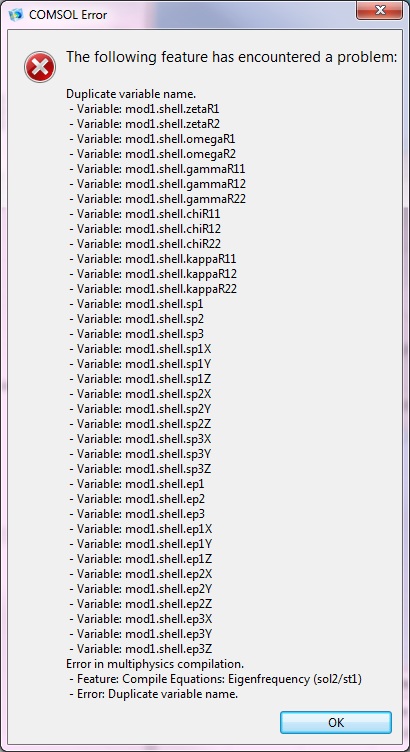

I am trying to use a PML with my model. The model uses solids and shells in the structural mechanics. The PML is around a solid block on five sides. However when I attempt to solve I get the error Duplicate variable names for a large list of shell variables (see attached). Can anyone tell me what I am doing wrong. Thanks.

Attachments:

3 Replies Last Post 09.03.2014, 03:02 GMT-4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 02.08.2012, 14:33 GMT-4
Hi

that looks very weird you must ahve managed to define domains double up, but one cannot tell how, just like that. Try to find a similar model in the model library and read through the doc, then try to recreate your model from scratch, that is the best I can propose ;)

--
Good luck
Ivar
Hi that looks very weird you must ahve managed to define domains double up, but one cannot tell how, just like that. Try to find a similar model in the model library and read through the doc, then try to recreate your model from scratch, that is the best I can propose ;) -- Good luck Ivar
Rachel Westwood
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 03.08.2012, 05:50 GMT-4
Thanks Ivar. I started from scratch and defined the solid mechanics physics before the shell physics and this time it worked.
Thanks Ivar. I started from scratch and defined the solid mechanics physics before the shell physics and this time it worked.
Yuan Weiguang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 09.03.2014, 03:02 GMT-4
Hi Ivar

I want to use PML simulate a model, but I do not know how to set PML when change the air by water. I have looked many model in the Model Library ,all the environment they used is air ,I want to use water environment , could I use PML as they used without any change ? Or what need to change ?

Thank you!

Weiguang
Hi Ivar I want to use PML simulate a model, but I do not know how to set PML when change the air by water. I have looked many model in the Model Library ,all the environment they used is air ,I want to use water environment , could I use PML as they used without any change ? Or what need to change ? Thank you! Weiguang
