Tangential Derivative of Curvature
Posted 17.05.2023, 15:01 GMT-4 Geometry Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam
Hello,

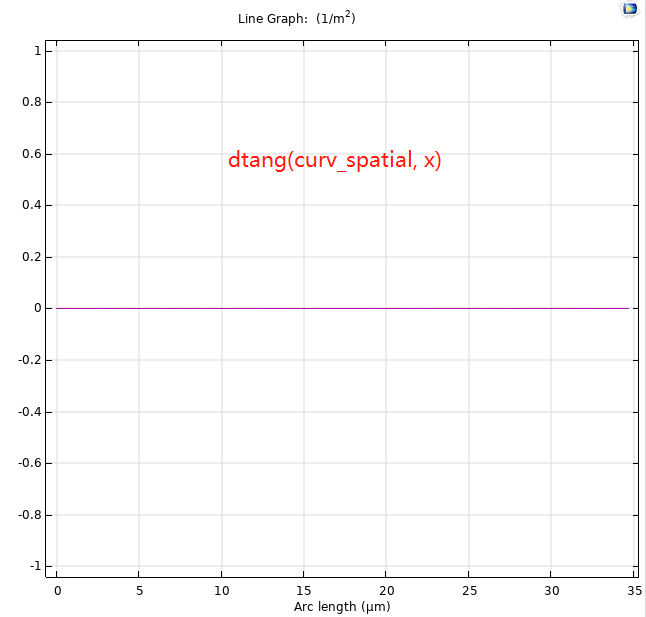

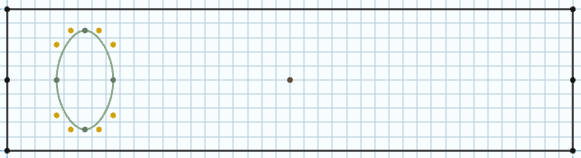

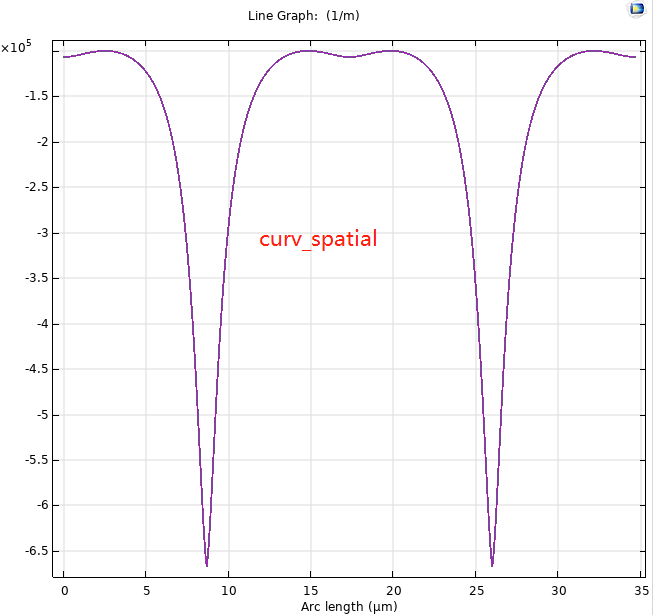

I have a question about tangential derivative of curvature. When I plot the curvature on the curve boundary using built-in function for a cubic rational Bezier curve, both curv_spatial and curv_geometry showed the right results. However, when plotting dtang(curv_spatial, x) or dtang(curv_geometry, x), both results are zero everywhere. Does anyone know why?
Attachments:
