Rendering the 3D Mesh of a Solid Body
Posted 17.05.2023, 04:19 GMT-4 0 Replies
Please login with a confirmed email address before reporting spam

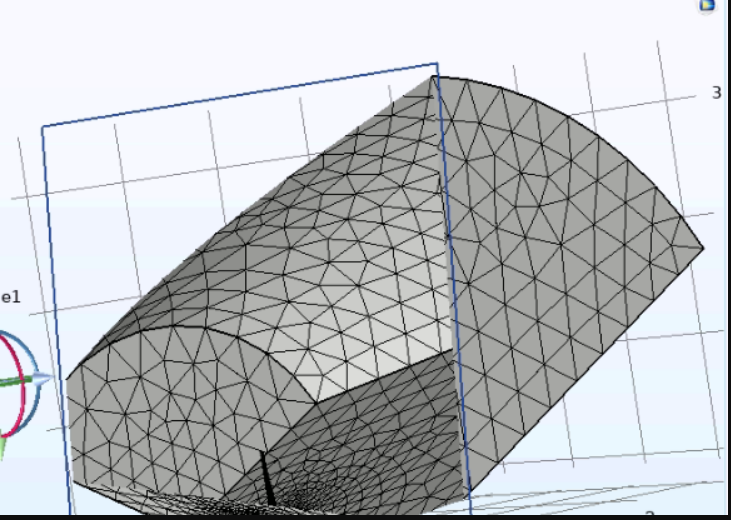

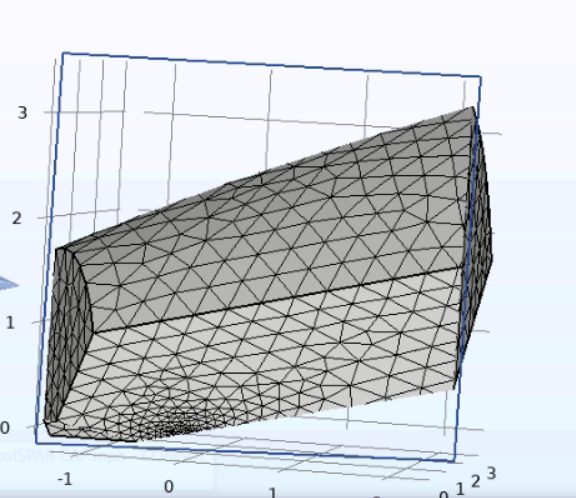

Hello everyone! I am setting a CFD simulation on COMSOL Multiphysics 6.0. I made a mesh of a 3D body, but sectioning the domain it looks like an empty shell, litterally a closed surface rather than a 3D solid and I can't make the rendering of the section of the mesh inside the solid body as shown in the attached screenshoot. I wonder whether it is simply a matter of graphical settings of the software
