Non active PML domains

Please login with a confirmed email address before reporting spam

Hi,

I have made a model for thin film bulk acoustic resonator. I have problem with the PML domains. my model has two physics: Solid mechanics for PML domins and Piezoelectric devices for remaining. when I run computation, no calculation happens in the PML domains like there is no such domains.
I tried to follow the "Thin Film BAW composit resonator sample from show cases in the COMSOL file but no improvement .
By the way, even when I open t"Thin Film BAW composit resonator sample from show cases in the COMSOL website in v4.2a the same problem happens.

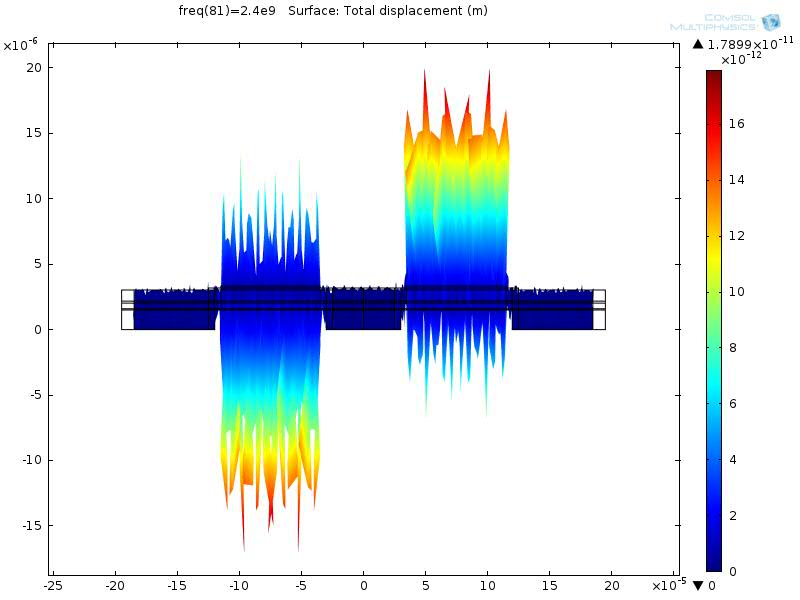

I have a jpeg picture of what result look like.

Would you please give some advice?

Best Regards,
Ramin,


0 Replies Last Post 30.08.2012, 10:06 GMT-4
COMSOL Moderator

Hello Ramin Matloub Aghdam

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
