Inlet: velocity or fully developed flow?

Posted 01.08.2021, 11:23 GMT-4 Fluid & Heat, Computational Fluid Dynamics (CFD) Version 5.6 1 Reply

Clarence Velez
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

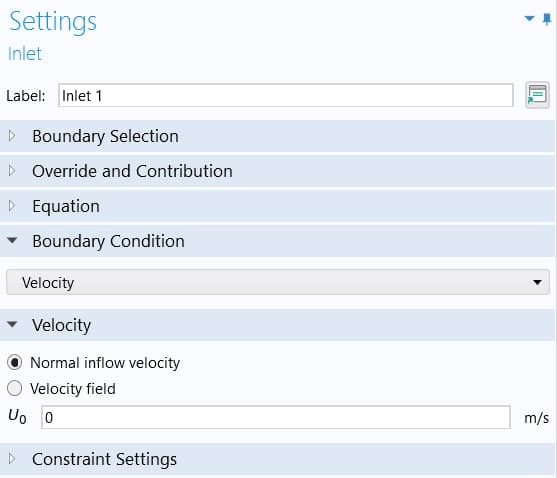

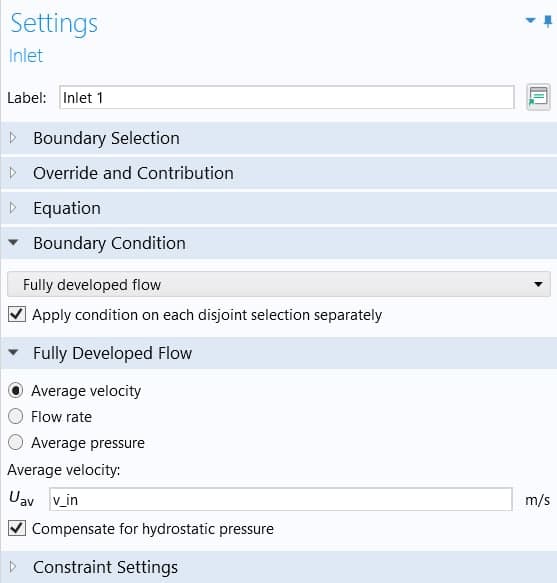

Hi I am using an "inlet" condition for my model in "laminar flow" physics. What are the differences between "Velocity" and "Fully developed flow"? Which one should I use and is better?

1 Reply Last Post 01.08.2021, 13:47 GMT-4
Dave Greve
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 01.08.2021, 13:47 GMT-4

It depends entirely on the physics of your problem.

Fully developed flow is correct if...the flow is fully developed...which happens when there is a sufficiently long straight region ahead of any obstruction.

It depends entirely on the physics of your problem. Fully developed flow is correct if...the flow is fully developed...which happens when there is a sufficiently long straight region ahead of any obstruction.
