some question about E-Core Transformer
Posted 01.07.2020, 05:04 GMT-4 Low-Frequency Electromagnetics, Structural & Acoustics, Structural Mechanics Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam
Hello，everyone! I have some question need your help. According to the example of case 'E-Core Transformer (Application ID: 14123)'. I have improved the coil （use the coil in Parts library），and add the solid mechanics to analyse the force of coil.

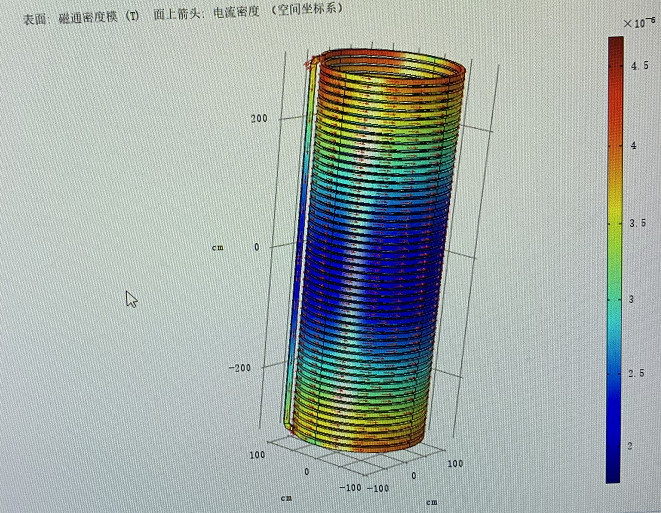

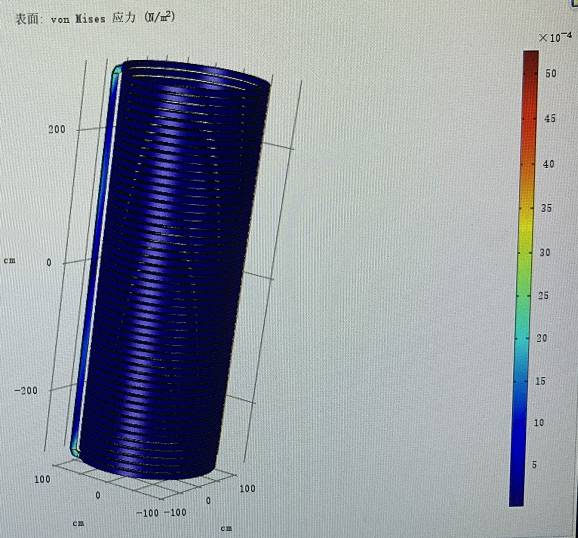

The result of magnetic is right (11.png)，but the result of force is wrong (22.png)， I am not sure why it is like this？ The Axial stress and Radial stress is which one in the result， respectively？
