Damping with spring foundation?

Posted 16.04.2018, 14:39 GMT-4 Acoustics & Vibrations, Geometry, Parameters, Variables, & Functions Version 5.3a 0 Replies

Nabs
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi everyone,

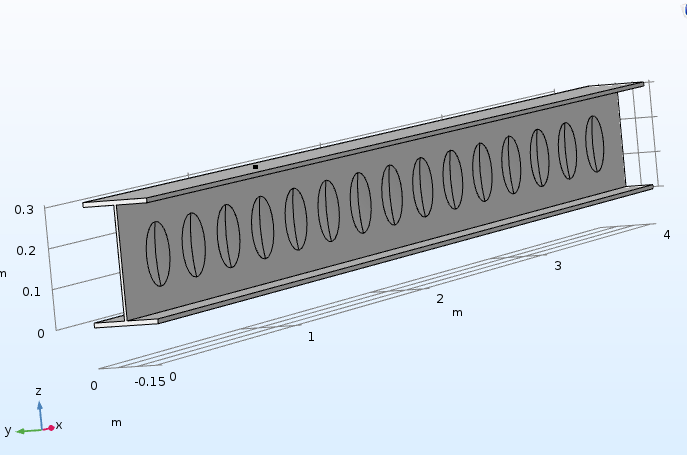

I'm analysing the effect of circular tapers (called Acoustic Black Holes) on beams when subjected to a point load. I wish to add a thin damping layer to these tapers but am unsure how exacly to go about it; I've tried spring foundation with loss factor damping of 0.1 but it doesn't seem to have any effect (same displacements with and without this). Looking at help, I can't see anything for just adding some good old standard damping to a geometry. Anyone know how to do that? Just a simple damping layer to the circular bits which you can see in the pic.

Thanks!

Attachments:

0 Replies Last Post 16.04.2018, 14:39 GMT-4
COMSOL Moderator

Hello Nabs

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
