Stress distribution

Posted 15.02.2018, 05:32 GMT-5 Results & Visualization, Structural Mechanics Version 5.2 4 Replies

Jovana Jovanova
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello everyone,

Is it possible to generate diagrams of the stress distribution in the cross section? I am working with a 3D model in the Structural mechanics module.

Kind regards,

Jovana.

4 Replies Last Post 23.02.2018, 07:47 GMT-5
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 15.02.2018, 07:49 GMT-5

Hi Jovana,

Can you please specify what type of diagram you are looking for? It may be the Stress Linearization feature you need, or just a Slice Plot in a 3D plot group.

Do you need stress components in a cross section local system?

Regards,

Henrik

-------------------
Henrik Sönnerlind
COMSOL
Hi Jovana, Can you please specify what type of diagram you are looking for? It may be the Stress Linearization feature you need, or just a Slice Plot in a 3D plot group. Do you need stress components in a cross section local system? Regards, Henrik
Jovana Jovanova
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 16.02.2018, 13:53 GMT-5

Hi Henrik,

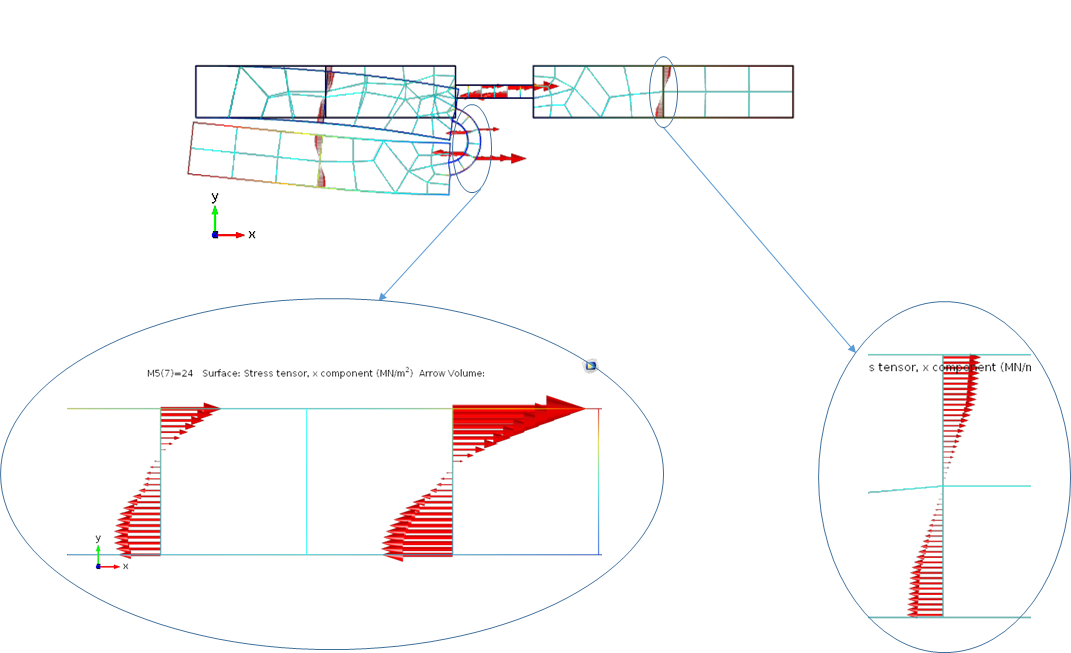

I attached a photo where you can see the type of plots/diagram that I would like to generate.

Thanks in advance,

Jovana

Hi Henrik, I attached a photo where you can see the type of plots/diagram that I would like to generate. Thanks in advance, Jovana

Attachments:

Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 19.02.2018, 02:32 GMT-5

Hi Jovana,

It seems like you want a Arrow Surface plot of the traction vector, (solid.Tax, solid.Tay, solid.Taz).

Regards,

Henrik

-------------------
Henrik Sönnerlind
COMSOL
Hi Jovana, It seems like you want a Arrow Surface plot of the traction vector, (solid.Tax, solid.Tay, solid.Taz). Regards, Henrik
Jovana Jovanova
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 23.02.2018, 07:47 GMT-5

Hi Henrik,

Thank you for your help.

Regards,

Jovana

Hi Henrik, Thank you for your help. Regards, Jovana
