Structural Mechanics: Static Linear Analysis

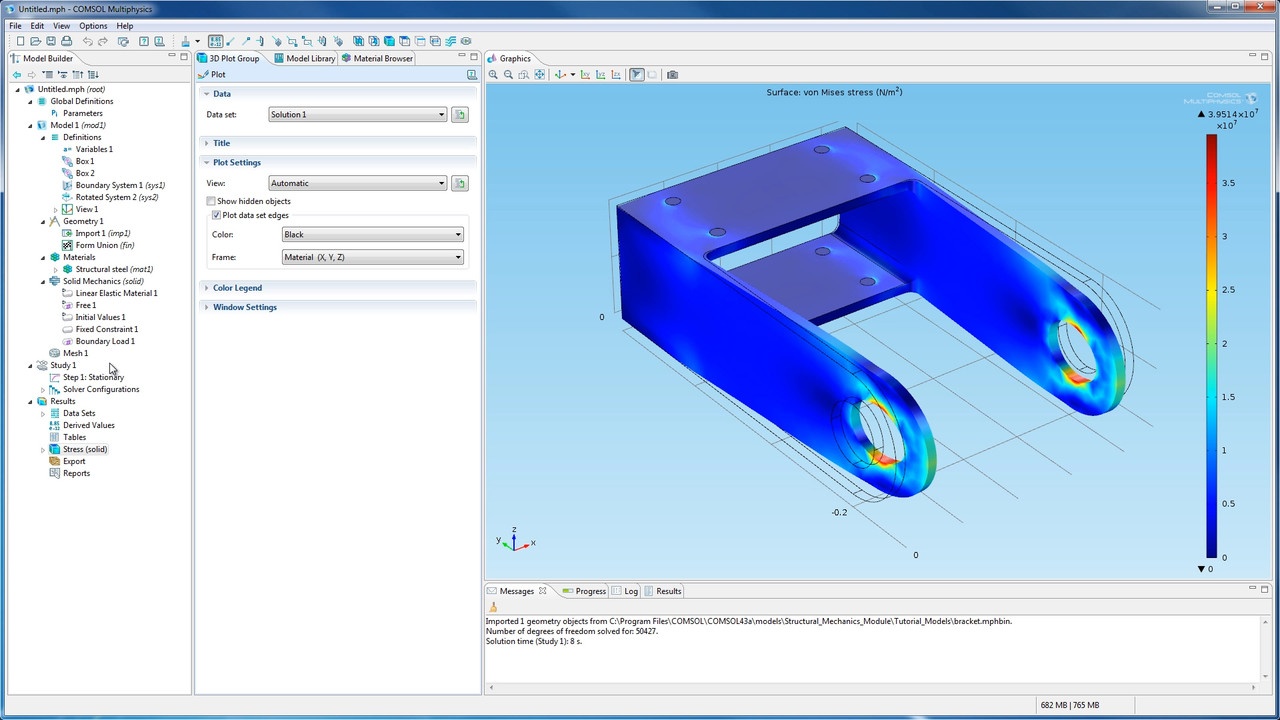

Shown is the simulation of a load applied to a bracket fixed in place. The model depicts the deformation in the bracket as well as the calculated resultant force. The video introduces you to the Structural Mechanics Module by outlining the Static Linear Analysis model. You can get more in-depth analyses along with complete model documentations at www.comsol.com/bracket.
