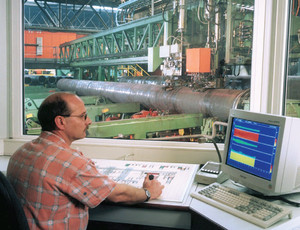

Salzgitter Mannesmann Forschung (SZMF) advances testing methods for the Salzgitter Group, a leading company that works with the manufacture of, among other things, pipes. In the manufacturing of heavy steel tubing, it is important maintain quality, which is done through conduct non-destructive testing (NDT) using large magnets to identify flaws (magnetic flux leakage inspection).

Oliver Nemitz now wants to leverage this technology to provide precise data about the extent, size or relevance of the flaws they detect; a process they have previously not done. Using the AC/DC Module, he was able to analyze signals from the inspection system on some standard samples with pre-defined flaws. With this information, he was able to provide qualitative information and a reference framework for the signals received on the factory floor.

The difference in scale between the size of the flaws and that of the test samples is very large, and would require very large meshes to provide adequate resolution for 3D modeling. Modeling the samples in 2D or using symmetries would restrict their investigations to symmetric flaws, which is of course not representative of reality. Yet, Nemitz was able to use impedance boundary conditions to take into account the skin effect, and only mesh this area and not the rest of the conductor.
