Single Mode Fiber-to-Fiber Coupling

Application ID: 75051

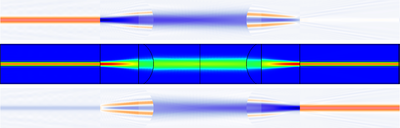

Focusing a laser beam onto the tip of a single mode fiber is a common way to couple light. To achieve good coupling efficiency, the spatial mode of the light field has to match the spatial mode of the fiber. In this model, we use the beam envelope method to compute a small free-space fiber–fiber coupling. The coupling efficiency depends on the position of the coupling lenses.

Dieses Beispiel veranschaulicht Anwendungen diesen Typs, die mit den folgenden Produkten erstellt wurden:
