Petzval Lens STOP Analysis

Application ID: 63831

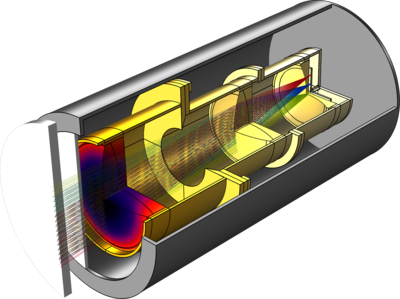

This model demonstrates an integrated structural-thermal-optical performance (STOP) analysis of an optical system. The Petzval Lens tutoral is used as the basis for this model, together with a simple barrel geometry

The isothermal model performs a Parametric Sweep over several uniform temperature values and the effect on the displacement fields and image quality as a function of temperature is shown.

The other (non-isothermal) includes a thermo-vacuum enclosure where the exterior temperature is significantly different from the interior. The lens assembly is placed inside this enclosure and is exposed to this exterior via a pair of windows. The resulting temperature gradients and displacement fields within the optical system are shown as well as with the effect on image quality.
