Journal Bearing with Cavitation

Application ID: 19717


A journal bearing is composed of an outer cylinder (bearing) wrapped around an inner rotating journal (shaft), with a lubricant separating the two. Under certain operating conditions, cavitation can occur between the bearing and the journal, leading to component damage and failure. Knowing the rate of cavitation is helpful when determining the maximum applied load.

Cavitation occurs when the pressure in the lubricant falls below the saturation pressure of gasses dissolved in the lubricant.

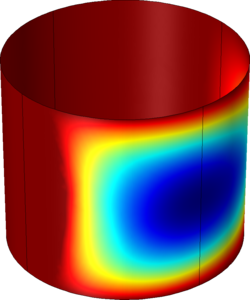

This model uses the "Thin-Film Flow, Shell" interface to determine the lubricant pressure and mass fraction. This helps predict the onset and extent of gaseous cavitation in the lubrication layer of the journal bearing.

This model is based on the Journal Bearing model that does not include cavitation effects.
