How to plot emw fase?
Posted 02.10.2015, 14:08 GMT-4 RF & Microwave Engineering Version 4.4 2 Replies
Please login with a confirmed email address before reporting spam

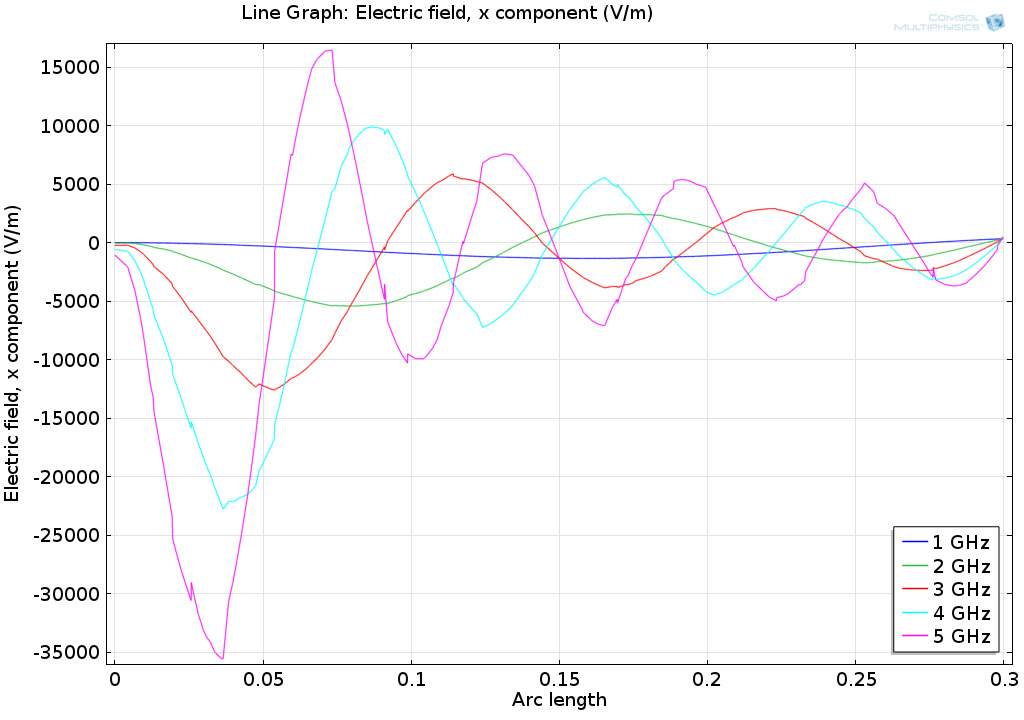

Hi everyone, I reached a good result for a hertzian dipole simulation and plotted the components along a 3D line, and I figured out that the results' graph shows the real part of the component.
I need to plot the fase variation along the planes, but I didn't found a expression from a complex form of the result. I put the Solver to split the real and imaginary part but the result don't converge.
If this is a repeated topic, I'm sorry..
Thank you!
I need to plot the fase variation along the planes, but I didn't found a expression from a complex form of the result. I put the Solver to split the real and imaginary part but the result don't converge.
If this is a repeated topic, I'm sorry..
Thank you!
Attachments:
2 Replies Last Post 09.10.2015, 07:47 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
For the phase of Ex, consider plotting atan2(imag(emw.Ex),real(emw.Ex))
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Piaga,
Also, you can use built-in function arg() to plot the phase of the complex-valued field: arg(emw.Ex).
Regards,
Sergei
Also, you can use built-in function arg() to plot the phase of the complex-valued field: arg(emw.Ex).
Regards,
Sergei
