parameter values in a single plot.....

Please login with a confirmed email address before reporting spam

Hi every one, I want to measure the change in magnetic flux density at different values of the same parameter. For this i used parametric sweep that gives me accurate values but it runs the whole file for each value of the parameter as depicted in the attached file.

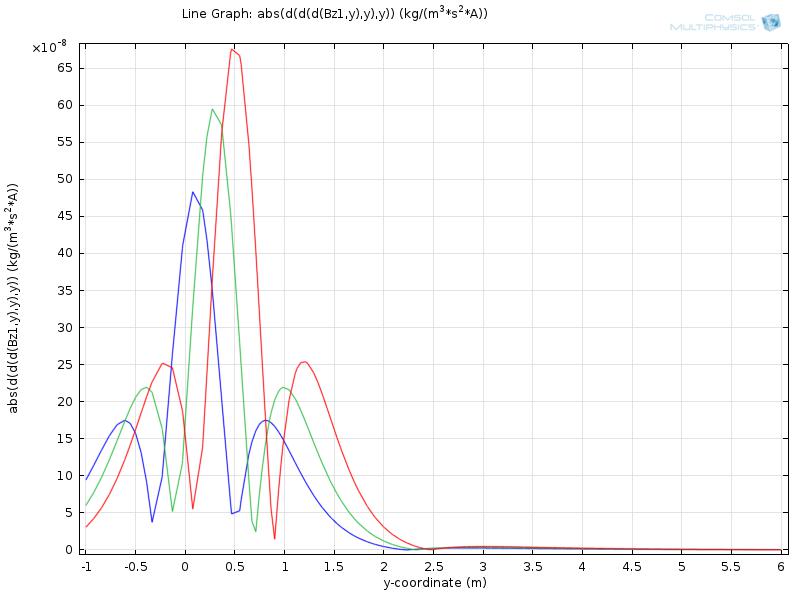

In the attached image there are three curves for three values of a parameter 'y'. The peak values are at y= 0.1, 0.3 and 0.5. For each there is a separate graph. I want it to be a single graph showing peak values at 0.1, 0.3 and 0.5. Plz could anyone help me with this... Thanks...


0 Replies Last Post 13.05.2015, 05:10 GMT-4
