Artefact on the periodic boundary

Posted 14.04.2015, 20:02 GMT-4 RF & Microwave Engineering Version 4.4 0 Replies

Semih Cakmakyapan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi all,

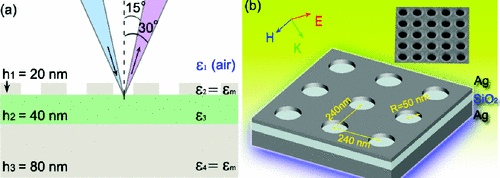

I am trying to reproduce the results for the structure studied in Phys. Rev. B 85, 245401 (2012). (I have attached the schematic of the plasmonic structure.)

I can obtain a reflection dip around 650 nm as expected, however there are some small unwanted dips in my spectrum. I checked the E-field distribution and I see that there is a strange field confinement on the dielectric sides, which is unusual since I use periodic boundary conditions. I believe this causes some additional reflections, and therefore I cannot obtain a clean spectrum as in the paper. Do you have any suggestions to get rid of the field on the dielectric boundary?

Thank you,
Semih

Attachments:

0 Replies Last Post 14.04.2015, 20:02 GMT-4
COMSOL Moderator

Hello Semih Cakmakyapan

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
