S-Parameters Two port Network

Please login with a confirmed email address before reporting spam

Hello,
I am new to comsol. I have attended couple of workshops and now i have a specific problem. I want to calculate the s-parameters of my network but I do not know how do i create this circuit diagram in comsol.

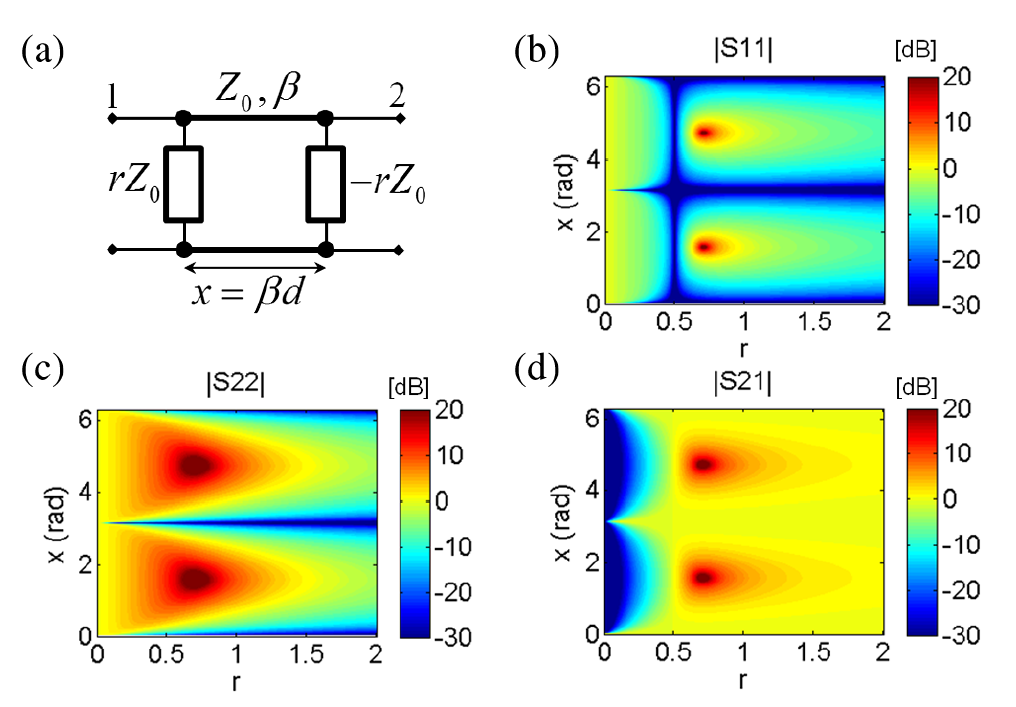

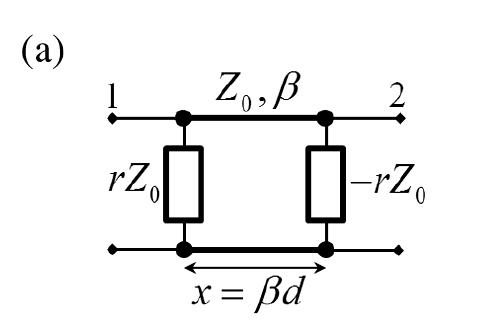

I have attached the diagram. I have started by defining the parameters. But now I am lost how to move further.
Any help would be greatly appreciated. I have to simulate the following to get the results.
Regards


0 Replies Last Post 02.03.2015, 17:36 GMT-5
COMSOL Moderator

Hello Hassan Farooq

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
