2D Flow Rates

Please login with a confirmed email address before reporting spam

Hi, I am doing some rather basic CFD work looking at how different objects obstruct the flow of fluid in a channel. My model is essentailly a square with different sized circles placed into it. The left side is the inlet (constant pressure) and the right side is the outlet.

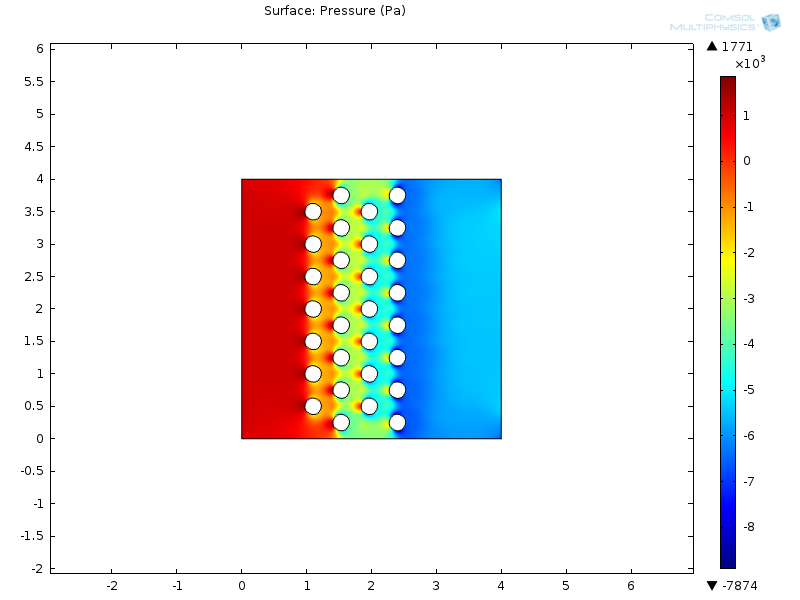

I have created surface plots of pressure and velocity, however I would really like to see the 2D flow rate on this. The only way I can think of doing this is to create an expression multiplying the velocity by the height of the element, giving me units of m^2/s. Unfortunately, I can't seem to do this. Does anyone know how to get such a result?

Thanks


0 Replies Last Post 23.10.2014, 17:14 GMT-4
COMSOL Moderator

Hello Rohun Heesen

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
