Streamline: Magnetic Flux Density
Posted 20.05.2014, 09:42 GMT-4 Low-Frequency Electromagnetics, Materials Version 4.4 0 Replies
Please login with a confirmed email address before reporting spam
i am new in the simulation with Comso and have a problem with presentation of Streamline Magnetic Flux Density. I have made a model with a coil and a "C" ferrite core.

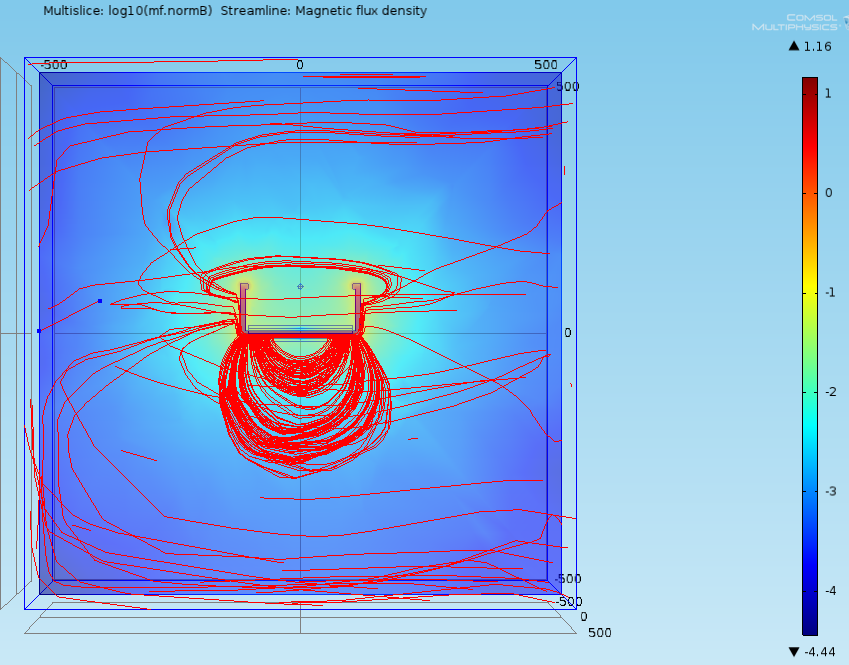

Unfortunately, the result does not look as expected. (see attached picture)
The steam lines should still be directly between the surfaces 27 and 32 (end faces of the coil core) or am I wrong? It would be nice if a professional ;) could view the model and can give me a hint.
Thanks for your help
cya Thommy
Attachments:
Hello Thomas Bender
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
