Field cage simulation

Posted 30.08.2013, 15:51 GMT-4 0 Replies

Igal Jaegle
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

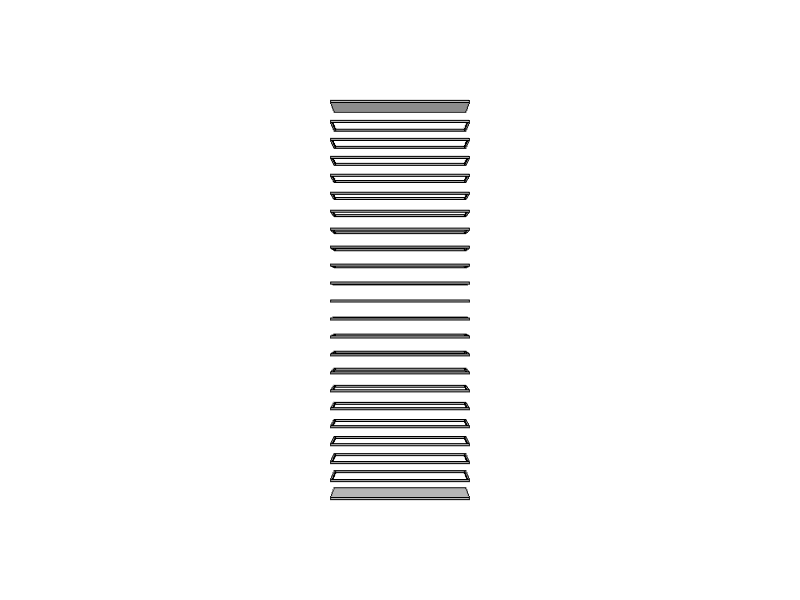

I am simulating a 300 V/cm electric field generated by a field cage composed of square copper plate (see enclosed figure). The mother volume is just a box of air, but in reality a gas will be used. I would like to include delrin rods to support the rings, kapton on the chamber wall as non conductive material to avoid breakdown voltage and finally for the wall it-self aluminium. Can I belive COMSOL results if I include these materials ? Can COMSOL simulate the charge accumulation ? and if yes what should I do to include it ?

Thanks in advance, sincerely,

Igal.

Attachments:

0 Replies Last Post 30.08.2013, 15:51 GMT-4
COMSOL Moderator

Hello Igal Jaegle

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
