Splitting one Geometry in two
Posted 02.05.2013, 10:07 GMT-4 Heat Transfer & Phase Change, Geometry, Materials Version 4.2a 3 Replies
Please login with a confirmed email address before reporting spam
Iam a newy in working with comsol Multiphysics and would be very glad if I could find some help in this forum for my problem.

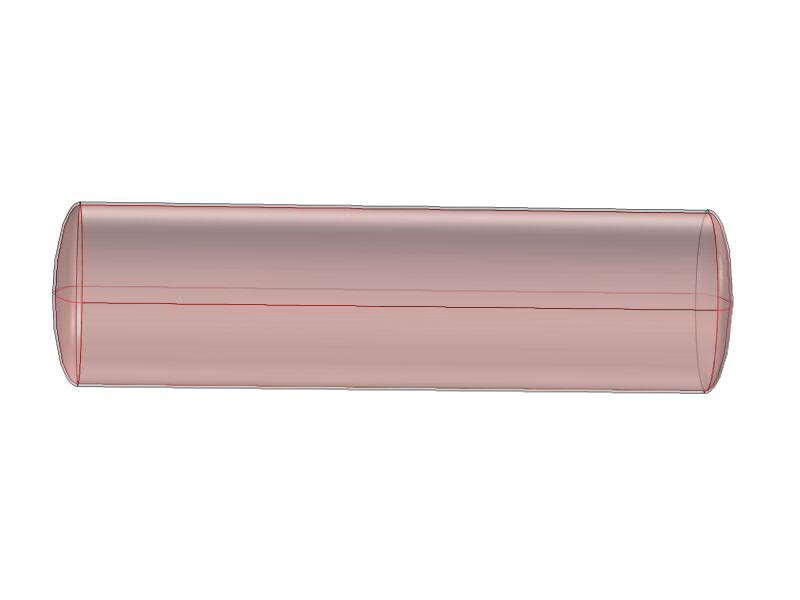

I would like to define two different materials in one geometry. You can watch in my attached grafic-file, which geometry Iam talking about. The file shows an tank with luiquid gas inside. But the tank should be filled with liquid gas just for 60 % and the rest should be gas. So there should be something like a border to define the liquid and the gas phase.
I have tried to do it with the workplane, but unfortunetly without succeeding.
Do somebody know how to handle this?
Thank you very much für your help!
Attachments:
Please login with a confirmed email address before reporting spam
indeed with a workplane and a drawing of the closed "solid" contour you should get a cut plane.
Else, the hard way, since your model looks very symmetric, is to add a block cutting away half the model, and then reconstructing it with a rotation of 180 or a mirror node
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
thank you very much for your help!
I tried the first tipp and succeed. But unfortunetly its only working with 50 %. So when the workplane splitts the middle of the tank. If I try to draw the solid contour at a higher plane, like somewhere above the middle axis, the contours come out of the tank because the tank gets smaller but the drawing plane is just for the middle axis.
I don't want to measure the contours. Should't the drawing plane be on the plane where I define it?
I hope you know what I mean and can give me a tipp!
Please login with a confirmed email address before reporting spam
these approaches were tricky before, it has been solved in the new 4.3b, that has added features of projecting cut planes and line conversion (finally :)
--
Good luck
Ivar
