Electric potential at t=0
Posted 17.04.2013, 16:51 GMT-4 9 Replies
Please login with a confirmed email address before reporting spam
Hi,
I was surprised to find that when my model is plotted at t=0, the electric potential that I apply appears. I was assuming that at t=0, V =0. My initial value for V is zero.
This does not seem correct to me. I find the same thing in the electrochemical_polishing.mph model from the COMSOL Model Library.

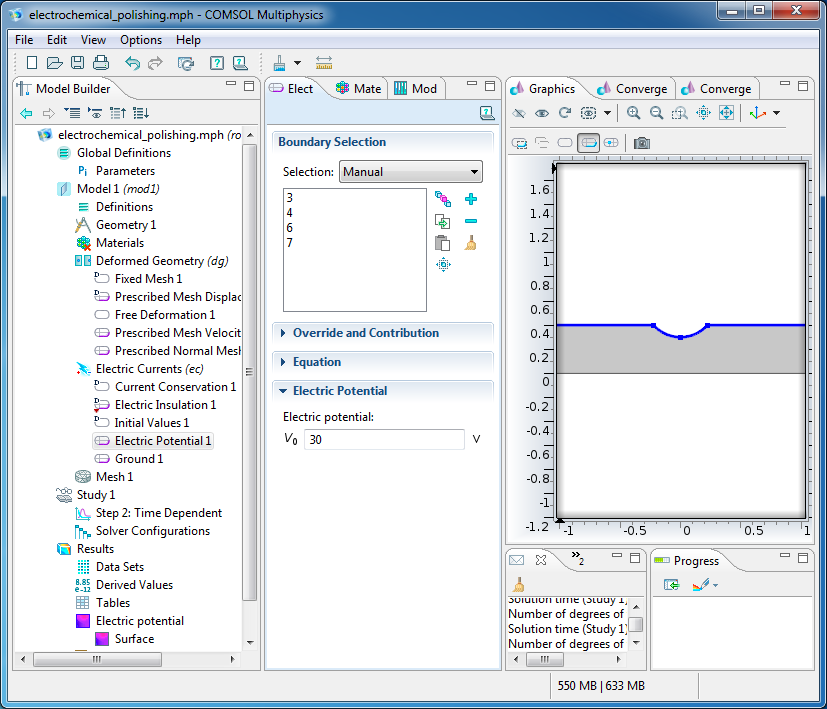

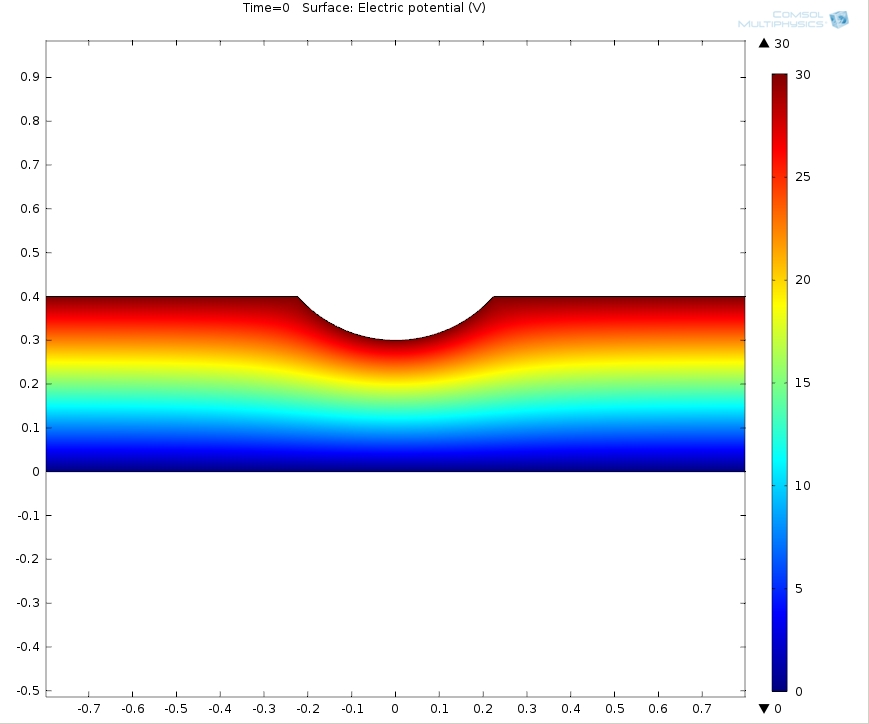

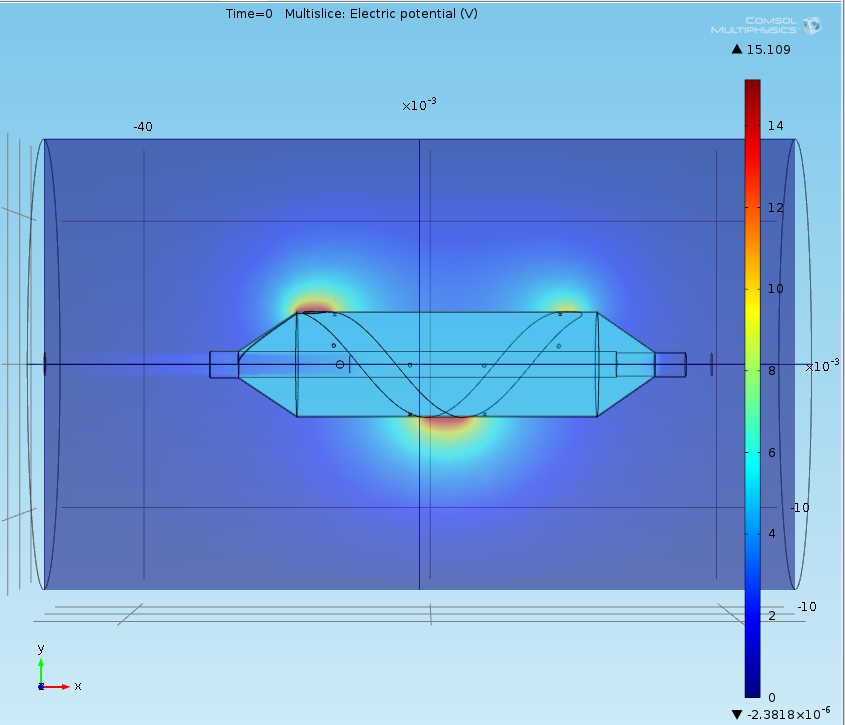

I have attached screenshots of both models.
Seems to me that at t=0, V =0, correct? Also, at what value of t does the solver apply the electric potential?
If I can't get around this, I would want to control the application of the electric potential to follow an exponential ramp such as: Vrf= (Vf -V0)* 1-exp(-t/tau) where Vf is the final potential desired, V0 is the initial potential at t=0, t = time, and tau = 1 sec.
Can anyone in the forum help with that?
Thanks,
Art
I was surprised to find that when my model is plotted at t=0, the electric potential that I apply appears. I was assuming that at t=0, V =0. My initial value for V is zero.
This does not seem correct to me. I find the same thing in the electrochemical_polishing.mph model from the COMSOL Model Library.
I have attached screenshots of both models.
Seems to me that at t=0, V =0, correct? Also, at what value of t does the solver apply the electric potential?
If I can't get around this, I would want to control the application of the electric potential to follow an exponential ramp such as: Vrf= (Vf -V0)* 1-exp(-t/tau) where Vf is the final potential desired, V0 is the initial potential at t=0, t = time, and tau = 1 sec.
Can anyone in the forum help with that?
Thanks,
Art
Attachments:
9 Replies Last Post 19.04.2013, 14:14 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
check your initial conditions, if you "solve for initial conditions" your V is probably =0, but if you have set it at t>0 to some other finite value, the results for t=0 will not be fully clean, as the time derivative must be respected and if you have a Dirac at "t=0" it will flow over in the final response. use rather a ramp of short rise time, and you will get V=0 at t=0 in your solutions too
--
Good luck
Ivar
check your initial conditions, if you "solve for initial conditions" your V is probably =0, but if you have set it at t>0 to some other finite value, the results for t=0 will not be fully clean, as the time derivative must be respected and if you have a Dirac at "t=0" it will flow over in the final response. use rather a ramp of short rise time, and you will get V=0 at t=0 in your solutions too
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
Electric potential boundry condition is set to Vo = 30 V, in this instance in any time V non equal zero.
Set Electric potential boundry condition Vo = 0 in t = 0 and enjoy.
---
COMSOL Russian User Group
vk.com/comsolmultiphysics
Electric potential boundry condition is set to Vo = 30 V, in this instance in any time V non equal zero.
Set Electric potential boundry condition Vo = 0 in t = 0 and enjoy.
---
COMSOL Russian User Group
vk.com/comsolmultiphysics
Attachments:
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
I was assuming that at t=0, V =0. My initial value for V is zero.
This is a misunderstanding. The initial values you specify in the Comsol physics interface are simply start values for the solver. You can think of it as the "first guess", which the solver takes and then starts iterating until it converges to the solution (as defined by the partial differential equations and the boundary conditions). This should not be confused with the meaning of "initial value" in "initial value problem", which refers to solving a differential equation (usually an ODE) for a given initial condition (at t0, but not necessarily at t0 = 0).
Also, at what value of t does the solver apply the electric potential?
If you have an "Electric potential" boundary condition in a time-dependent problem and enter a simple constant (as opposed to a function of time, using the built-in time variable "t"), then this potential is applied at all times, i.e. starting at t = −∞.
If I can't get around this, I would want to control the application of the electric potential to follow an exponential ramp such as: Vrf= (Vf -V0)* 1-exp(-t/tau) where Vf is the final potential desired, V0 is the initial potential at t=0, t = time, and tau = 1 sec.
Basically you have to enter the above formula in the "Electric potential" boundary condition and define all those constants as a "Global parameter".
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
All,
Thanks for so much valuable information about this subject. While I was waiting for a response, I was searching threads of this forum.
I found something that is also relevant. In my model. Now I see that since I am solving the electrical problem in the frequency domain, the voltage plot should always look the same irrespective of the time step. There really is no t= 0 for that analysis, correct?
In order to do the analysis for my purposes, I need to apply an AC voltage in the time domain so that it is included in the time dependent analysis.
In all the threads, there were some incomplete suggestions but not concrete steps on how to apply an AC voltage in a time dependent study. One suggestion was to apply the voltage, Vo as Vo= 2* pi* f * time. No example file was posted.
If this is how it's done, could someone post an example file? If this is not correct, could someone explain how to do this?
Many thanks in advance,
Art
Thanks for so much valuable information about this subject. While I was waiting for a response, I was searching threads of this forum.
I found something that is also relevant. In my model. Now I see that since I am solving the electrical problem in the frequency domain, the voltage plot should always look the same irrespective of the time step. There really is no t= 0 for that analysis, correct?
In order to do the analysis for my purposes, I need to apply an AC voltage in the time domain so that it is included in the time dependent analysis.
In all the threads, there were some incomplete suggestions but not concrete steps on how to apply an AC voltage in a time dependent study. One suggestion was to apply the voltage, Vo as Vo= 2* pi* f * time. No example file was posted.
If this is how it's done, could someone post an example file? If this is not correct, could someone explain how to do this?
Many thanks in advance,
Art
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
in frequency domain swep you define the amplitudes of your AC voltage (or excitation signal) and/or phys with a phasor expression. but its for steady state results.
You have also harmonic perturbation on a static DC level, as well as frequency time dependent (time dependent amplitude of a constant AC signal) (but no mix frequecy spectrum x time) this you obtain normally by superposition, assuming that the response is linear.
In time series with 2*pi*freq*t you are really looking for the transient behaviour, take care with your initial conditions, else you will excite large swingings at t=0 that might not damp out and might mask competely your desired analysis ;)
--
Good luck
Ivar
in frequency domain swep you define the amplitudes of your AC voltage (or excitation signal) and/or phys with a phasor expression. but its for steady state results.
You have also harmonic perturbation on a static DC level, as well as frequency time dependent (time dependent amplitude of a constant AC signal) (but no mix frequecy spectrum x time) this you obtain normally by superposition, assuming that the response is linear.
In time series with 2*pi*freq*t you are really looking for the transient behaviour, take care with your initial conditions, else you will excite large swingings at t=0 that might not damp out and might mask competely your desired analysis ;)
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi Ivar,
Thanks for your reply. Do you have more specifics on setting up this type of an analysis to prevent the kind of issues that you describe? Perhaps an example study?
Thanks,
Art
Thanks for your reply. Do you have more specifics on setting up this type of an analysis to prevent the kind of issues that you describe? Perhaps an example study?
Thanks,
Art
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
No I do not have any specific examples. Whatt I usually do, each time I change domain (Physics, and what I do frequently from the demand on modelling coming in ;) is to run through a few of the model library examples, then to make me some easy examples if I have any doubts.
One thing, take some care with examples based on "cubes" in a cartesian corrdinate system: use rather a sphere or a skewed cube, as often you are studying an exception of the general theory that might show up when you are nicely aligned with the coordinate system
For transient analyiss, the main disturbance comes from sudden BC values turned on at t=0. "My way" is to run a stationary case first (when possible) and use that as initial conditions, and supplied with time series equations when required. To mini mise the t=0 turn on transients. Sometimes, you might also start by turning OFF the inertial terms (d/dt^2 ones) or use the "creep flow" option, but go back once you have got the settings OK
--
Good luck
Ivar
No I do not have any specific examples. Whatt I usually do, each time I change domain (Physics, and what I do frequently from the demand on modelling coming in ;) is to run through a few of the model library examples, then to make me some easy examples if I have any doubts.
One thing, take some care with examples based on "cubes" in a cartesian corrdinate system: use rather a sphere or a skewed cube, as often you are studying an exception of the general theory that might show up when you are nicely aligned with the coordinate system
For transient analyiss, the main disturbance comes from sudden BC values turned on at t=0. "My way" is to run a stationary case first (when possible) and use that as initial conditions, and supplied with time series equations when required. To mini mise the t=0 turn on transients. Sometimes, you might also start by turning OFF the inertial terms (d/dt^2 ones) or use the "creep flow" option, but go back once you have got the settings OK
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi Ivar,
Thanks for the background; very useful. Another tidbit that shines some light on the subject comes from the AC/DC User's Guide for V4.3 on page 255:
At the top of the page of the section "Theory for the Magnetic and Electric Fields Interface," is a note that says:
"The Magnetic and Electric Currents interface only supports the stationary and frequency domain study types—that is, there is no transient formulation available."
This would seem to say straight out that time dependent analysis for Electric Currents is not available, correct?
Thanks,
Art
Thanks for the background; very useful. Another tidbit that shines some light on the subject comes from the AC/DC User's Guide for V4.3 on page 255:
At the top of the page of the section "Theory for the Magnetic and Electric Fields Interface," is a note that says:
"The Magnetic and Electric Currents interface only supports the stationary and frequency domain study types—that is, there is no transient formulation available."
This would seem to say straight out that time dependent analysis for Electric Currents is not available, correct?
Thanks,
Art
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
I wouldnt say time dependent analysis is out in all ACDC, but the ACDC hypothesis is based on "small model compared to the wavelength", i.e. time dependent propagation of fields are instantaneous in some sens.
But I have done time series due to capacitive discharge, inductive load etc. it is if you want to do high frequency field propagation with time series you need to use the RF. Check carefully the ACDC and RF hypothesis. there is a grey zone where both are valid or both are about as "wrong" ;)
--
Good luck
Ivar
I wouldnt say time dependent analysis is out in all ACDC, but the ACDC hypothesis is based on "small model compared to the wavelength", i.e. time dependent propagation of fields are instantaneous in some sens.
But I have done time series due to capacitive discharge, inductive load etc. it is if you want to do high frequency field propagation with time series you need to use the RF. Check carefully the ACDC and RF hypothesis. there is a grey zone where both are valid or both are about as "wrong" ;)
--
Good luck
Ivar
