Need to change circular planar shape to hexagonal

Please login with a confirmed email address before reporting spam

Hi,

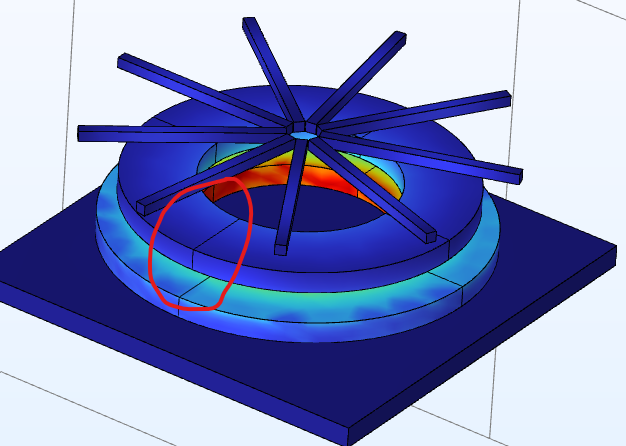

I wish to change the circular coil to hexagonal in 3D. Take a look the 3D design,

Suggest me what to do in Geometry>workplane>plan geometry>rectangular .



1 Reply Last Post 03.04.2025, 10:17 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 2 days ago 03.04.2025, 10:17 GMT-4

Hello Md Mubdiul,

To create a regular polygon, such as a hexagon, in a workplane, from the workplane's Plane Geometry node, use the Parts > Parts Library > COMSOL Multiphysics > Regular Polygon tool.

Once you've drawn the hexagon in the workplane, you can use an extrusion to turn it into a hexagonal cylinder. Best,

Jeff

-------------------
Jeff Hiller
Hello Md Mubdiul, To create a regular polygon, such as a hexagon, in a workplane, from the workplane's Plane Geometry node, use the Parts > Parts Library > COMSOL Multiphysics > Regular Polygon tool. Once you've drawn the hexagon in the workplane, you can use an extrusion to turn it into a hexagonal cylinder. Best, Jeff
