Calling variable or convert T(x,y,z) = >T(x,y,t) between models

Posted 18.02.2013, 15:23 GMT-5 Heat Transfer & Phase Change, Computational Fluid Dynamics (CFD), Geometry, Materials, Parameters, Variables, & Functions, Studies & Solvers Version 4.3, Version 4.3a 4 Replies

Rogelio Fontana
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi: Please help! I'm very stuck with a quite straightforward problem.

I've got two models:

1) Model 1: 3D Heat Transfer Stationary
2) Model 2: 2D Teat Transfer Time Dependent.

How can I call T(x,y,z) from the model 1 to T(x,y,t) in the model 2 If I want, for example, a source temporal variable Q(x,y,t) with the same shape. i.e. Q(x,y,t)=10*T(x,y,z=t)? The problem is how to change the z axis for the "t" temporal coordinate. How to input a source like this?

Thanks in advance.

4 Replies Last Post 22.02.2013, 13:17 GMT-5
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20.02.2013, 02:41 GMT-5
Hi

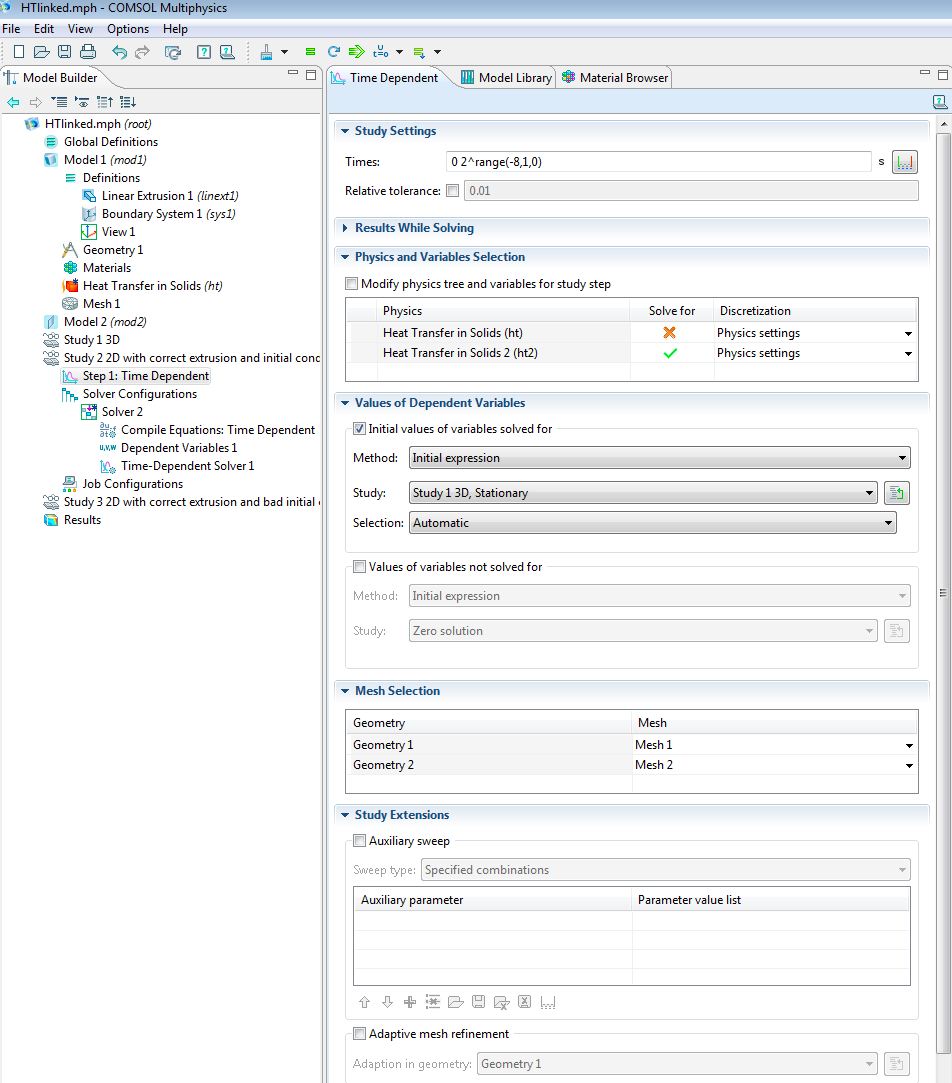

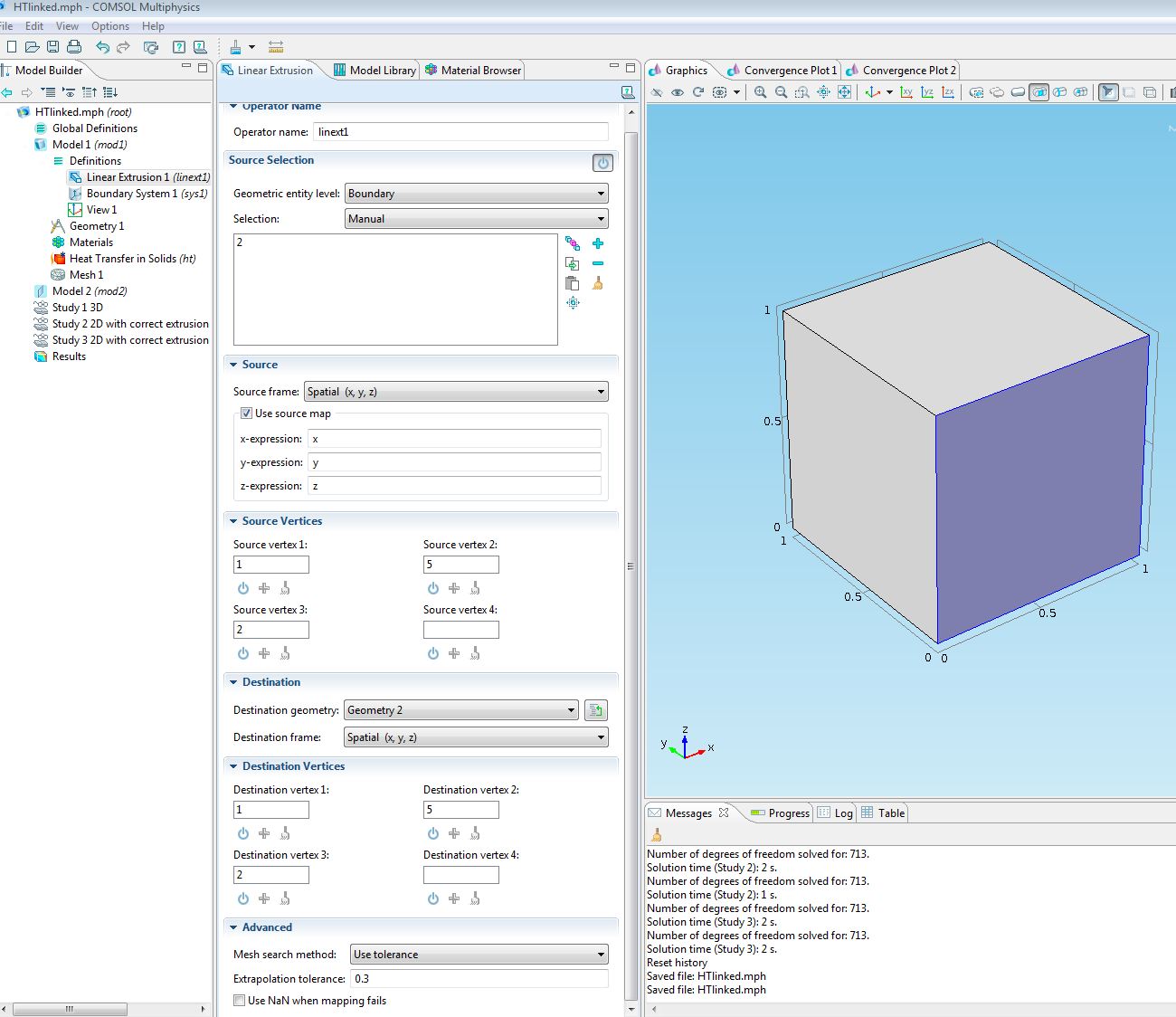

I have only 4.3a so here is a model, check carefully the linear extrusion definition on mod1, and the solver initial conditions of study 2

--
Good luck
Ivar
Hi I have only 4.3a so here is a model, check carefully the linear extrusion definition on mod1, and the solver initial conditions of study 2 -- Good luck Ivar
Rogelio Fontana
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 22.02.2013, 09:58 GMT-5
Thank you Ivar! But I've got the 4.3 version. Can you upload some pictures of how is the model set? Specially how to set the source with the extrusion operator and when replacing the z coordinate for the t coordinate.

Thanks again!
Thank you Ivar! But I've got the 4.3 version. Can you upload some pictures of how is the model set? Specially how to set the source with the extrusion operator and when replacing the z coordinate for the t coordinate. Thanks again!
Rogelio Fontana
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 22.02.2013, 11:00 GMT-5
Hi Ivar, another question. If the model 2 gemoetry is 2d, why there are points 1, 3 and 5 in the extrusion for gemoetry 2? Geometry 2 must be a flat square, and there are only 4 points.
Hi Ivar, another question. If the model 2 gemoetry is 2d, why there are points 1, 3 and 5 in the extrusion for gemoetry 2? Geometry 2 must be a flat square, and there are only 4 points.
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 22.02.2013, 13:17 GMT-5
Hi

in 2D you define the origine, the X direction and a Y direction, for source and destination (you fill in the 4th point if you do a 3D mapping

--
Good luck
Ivar
Hi in 2D you define the origine, the X direction and a Y direction, for source and destination (you fill in the 4th point if you do a 3D mapping -- Good luck Ivar
