Following the manual but got the false result

Posted 22.01.2013, 05:30 GMT-5 Studies & Solvers Version 4.3 2 Replies

Meixia Shi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear all,

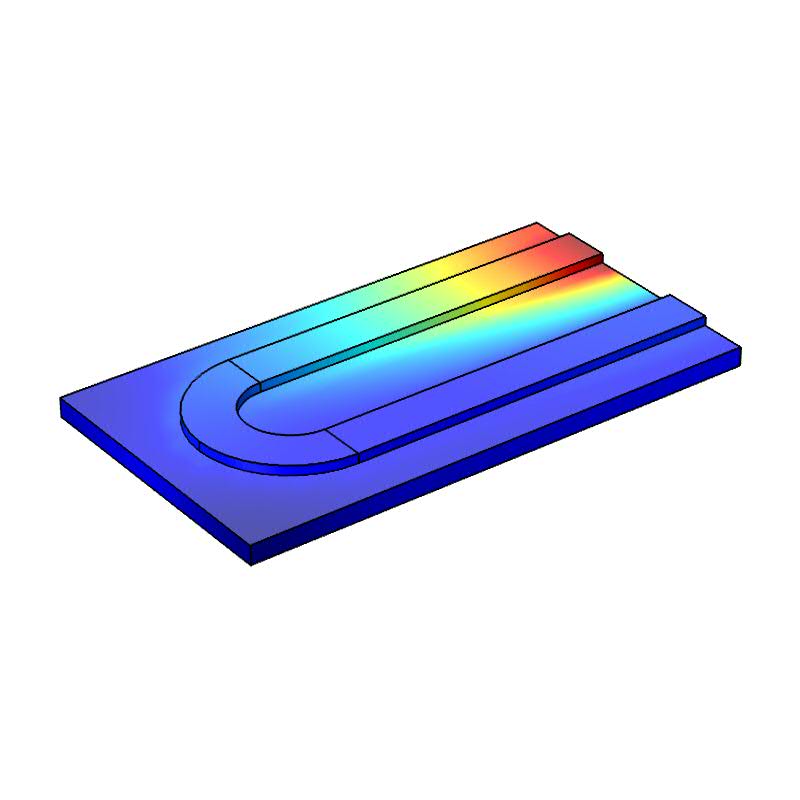

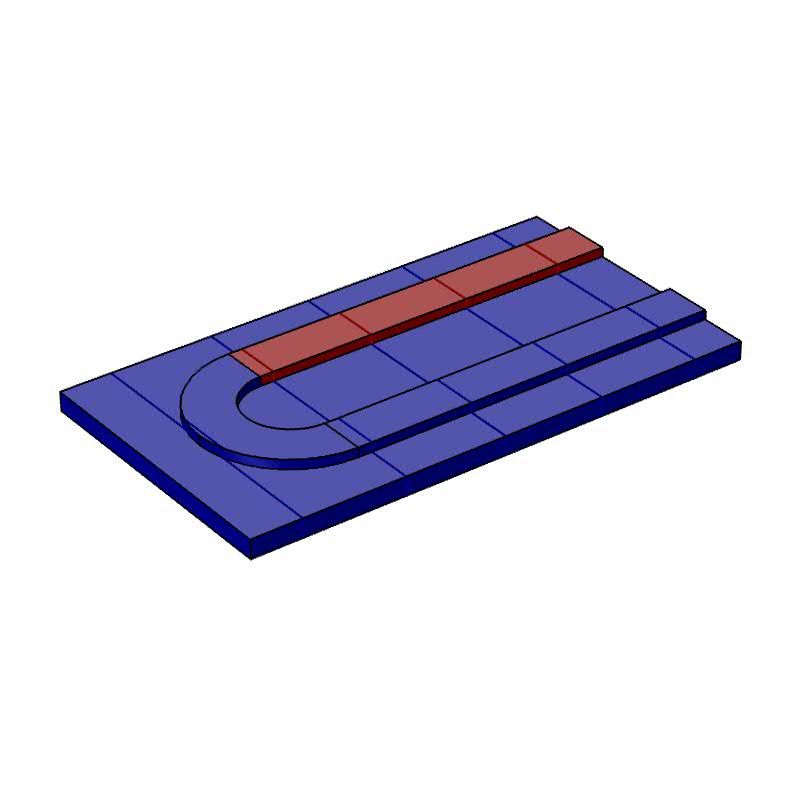

It's weird that I followed every step in the manual but got a wrong result for thin layer diffusion model. I'm a COMSOL beginner user; would anyone who knows the reason tell me how to resolve it? I've attached the model result and what I did. Thanks a lot in advance!
2 Replies Last Post 27.01.2013, 04:46 GMT-5
Meixia Shi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27.01.2013, 04:25 GMT-5
I've solved it by comparing the model and my work step by step. The only thing I missed last time is that I haven't chosen the identity pair in the continuity session. Thanks!
I've solved it by comparing the model and my work step by step. The only thing I missed last time is that I haven't chosen the identity pair in the continuity session. Thanks!
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27.01.2013, 04:46 GMT-5
Hello

good you found out, normally if you go through the model step by step it works (I have not so far found serious errors therein) but I have too though I got everything right, but the results were wrong and then it took me some time to find the "missing item". On the other hand, by plotting out other variables to try to verify what went wrong, I learn a lot on how to plot, how to best validate and verify my models

--
Good luck
Ivar
Hello good you found out, normally if you go through the model step by step it works (I have not so far found serious errors therein) but I have too though I got everything right, but the results were wrong and then it took me some time to find the "missing item". On the other hand, by plotting out other variables to try to verify what went wrong, I learn a lot on how to plot, how to best validate and verify my models -- Good luck Ivar
