Periodic boundary condition (PBC) for solid porous material

Please login with a confirmed email address before reporting spam

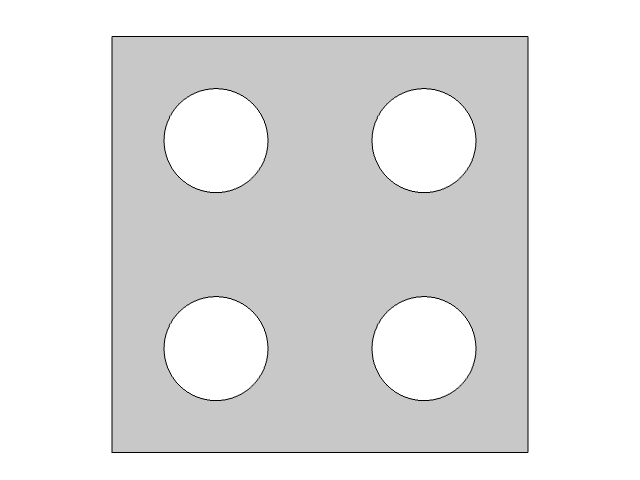

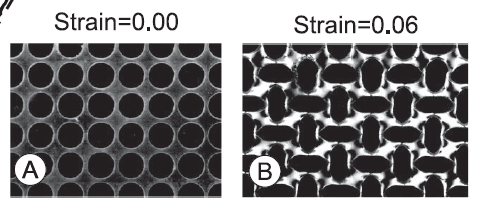

What Comsol options should I use to properly define periodic boundary conditions (PBCs) for solids with uniformly distributed cylindrical holes? Unit cell is presented in: (unit-cell-1, unit-cell-3)

Some Comsol helps does not help to solve the problem of compressing / stretching the unit cell.

Example 1.

https://www.comsol.com/support/learning-center/article/80311

Applied load in one direction does not influence other sizes of unit cell. Why?

Example 2.

https://www.comsol.com/blogs/analyzing-a-unique-poroelastic-metamaterial-with-simulation

In second example deformed unit cell is still cubic box.

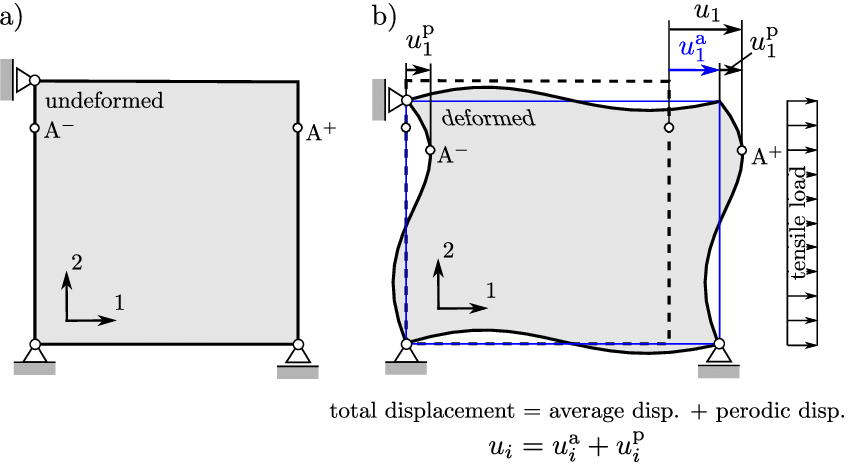

Sometimes it is not possible. See attached figure unit-cell-4.

How to make boundaries deformed after PBC will be applied with loads?



0 Replies Last Post 31.07.2024, 18:21 GMT-4
COMSOL Moderator

Hello Tomasz Strek

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
