1D plot of some points

Laboratorio Diagnostica

Please login with a confirmed email address before reporting spam

Hi everybody,
I have one problem in my model:
I want to plot(1D POINT PLOT) the temperature of some points but if that point is not a node i don't know how to select it..

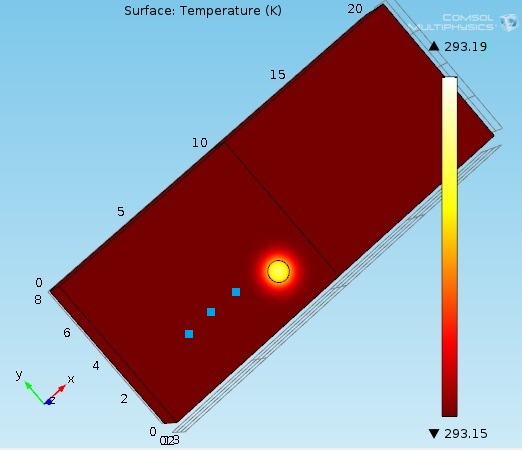

The geometry and the points i want to plot the temperature are in the picture.


1 Reply Last Post 06.12.2012, 15:50 GMT-5
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 06.12.2012, 15:50 GMT-5
Hi

either you create some points in your geoemtry and forces the mesh to place some nodes that you might pick (or you make edges or surfaces intersect yt your points (this adds some internal boundaries).

But you might also use the Results Data-Set cut sorface, cut edge cut point feature to define some specific location and have COMSOL interpolate the results onto these locations, then you can select these Data-Sets for your plots

--
Good luck
Ivar
Hi either you create some points in your geoemtry and forces the mesh to place some nodes that you might pick (or you make edges or surfaces intersect yt your points (this adds some internal boundaries). But you might also use the Results Data-Set cut sorface, cut edge cut point feature to define some specific location and have COMSOL interpolate the results onto these locations, then you can select these Data-Sets for your plots -- Good luck Ivar
