Modelling Dipole Antenna

Posted 02.11.2023, 07:55 GMT-4 2 Replies

Charumathi P R
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

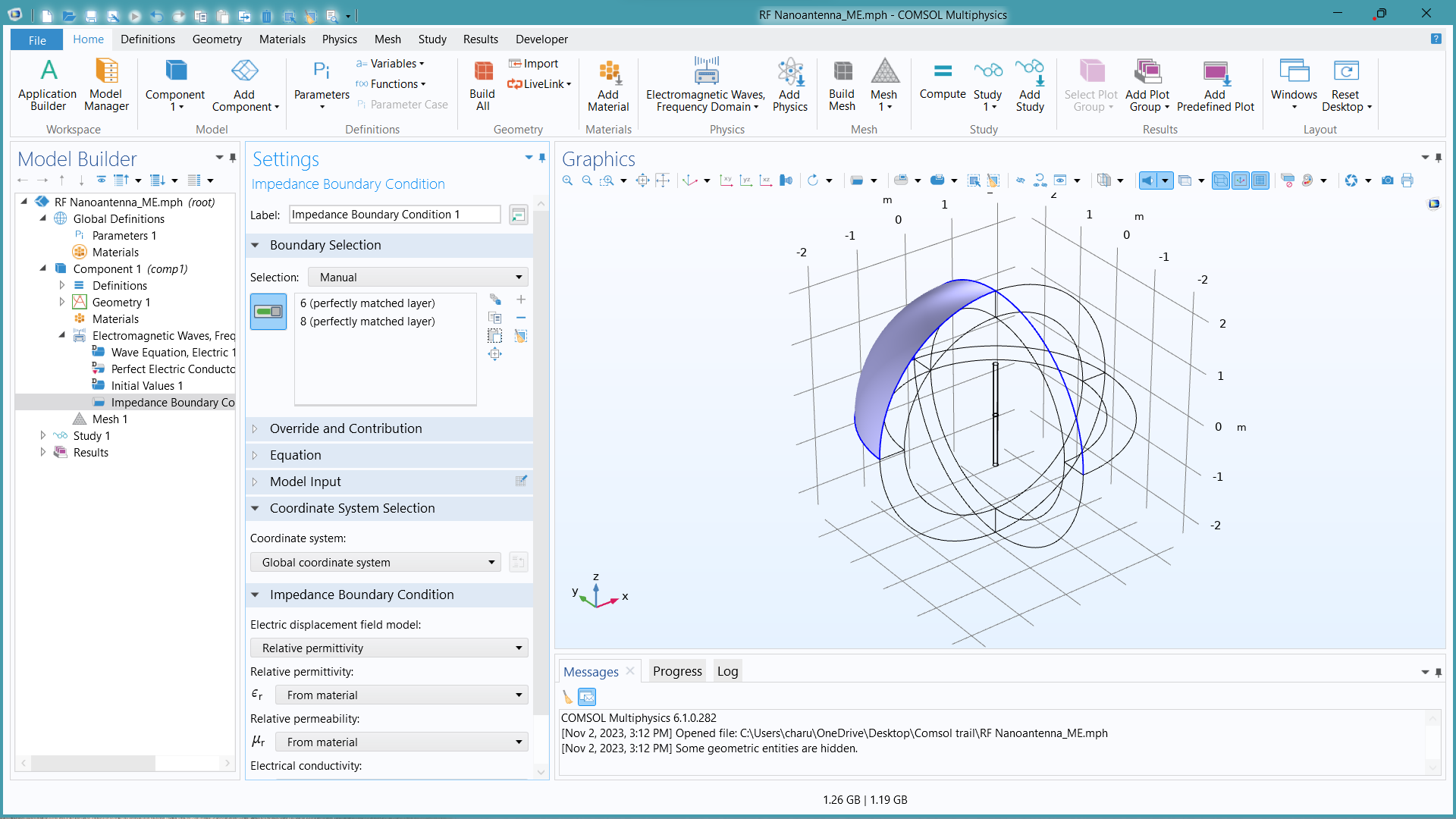

I tried to model dipole antenna (by following comsol guidelines). While following the steps, Impedance Boundary conditions, I can't select boundary from the geometry. The geometry selected looks like this. Please do tell me where I went wrong. .

2 Replies Last Post 02.11.2023, 09:20 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 year ago 02.11.2023, 08:40 GMT-4
Updated: 1 year ago 02.11.2023, 08:40 GMT-4

Could it be that you have hidden the boundary you are trying to select? It looks that way on the screenshot you attached.

Jeff

-------------------
Jeff Hiller
Could it be that you have hidden the boundary you are trying to select? It looks that way on the screenshot you attached. Jeff
Magnus Ringh COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 year ago 02.11.2023, 09:20 GMT-4

Hi,

I think that Jeff is right. Another tip is to use the mouse wheel to move between all boundaries or domains in a 3D geometry that the mouse is pointing toward. It can make it easier to select hidden parts of the geometry.

Best,

Magnus

Hi, I think that Jeff is right. Another tip is to use the mouse wheel to move between all boundaries or domains in a 3D geometry that the mouse is pointing toward. It can make it easier to select hidden parts of the geometry. Best, Magnus
