Complex model mesh import

Posted 29.06.2023, 04:29 GMT-4 Geometry, Modeling Tools & Definitions, Modeling Workflow Version 6.0 1 Reply

Hhuarui Li
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

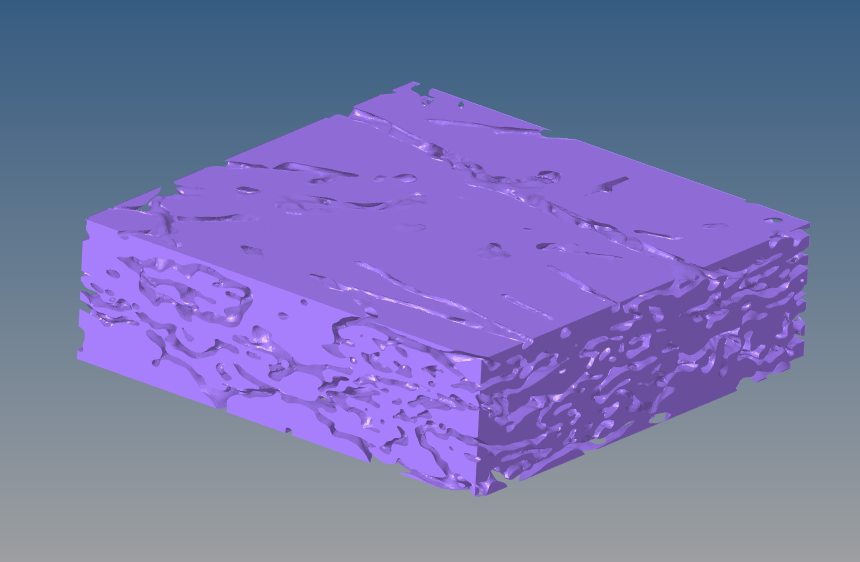

We import the bdf grid file of porous media which was proccessed in HyperMesh to COMSOL, but there is the problem: "Two elements connect to the same side of the shared boundary element". How to solve this problem? Thanks a lot.

Attachments:

1 Reply Last Post 29.06.2023, 07:06 GMT-4
Bjorn Bretz COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 year ago 29.06.2023, 07:06 GMT-4

Dear Hhuarui,

The error indicates that the mesh data that you are trying to import defines an invalid (according to COMSOL) mesh. If you have a license that includes support I suggest that you submit a new support case where you attach the bdf grid file.

Dear Hhuarui, The error indicates that the mesh data that you are trying to import defines an invalid (according to COMSOL) mesh. If you have a license that includes support I suggest that you submit a new support case where you attach the bdf grid file.
