one dimension ultrasound
Posted 18.05.2023, 11:44 GMT-4 Wave Optics, Results & Visualization Version 6.1 0 Replies
Please login with a confirmed email address before reporting spam

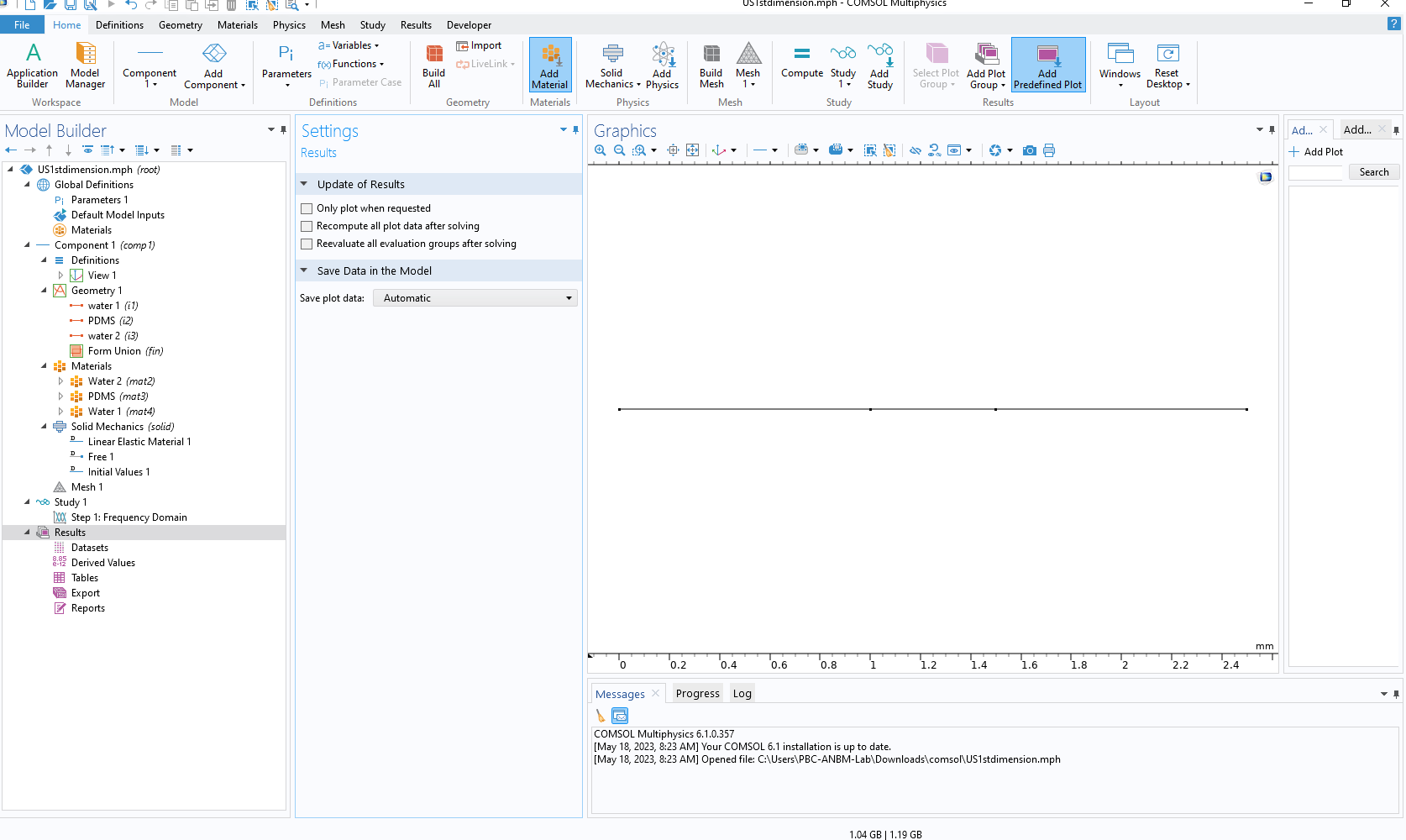

I had a question about working with comsol on 1 dimension. I am trying to create a stream of water to PDMS to water again which I have done shown below. However, in the beginning water I want to have an ultrasound wave of 1MHz to be imputed (left to right) but I am having trouble with that. I have tried going to physics and adding a boundary but it doesn't work. I saw it work in a video on Youtube but that's because their model was 2 dimensional, in which they used the inlet feature however the inlet feature isn't in the one dimensional model. How would I solve this? or would it only be possible to do this if i use a 2 dimensional model?
Attachments:
Hello Aidee Beltran Quiroz
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
