Using Helmholtz equation

Posted 13.03.2023, 13:13 GMT-4 Modeling Tools & Definitions, Structural Mechanics, Material Models Version 5.6 1 Reply

Sourabh Puranik
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

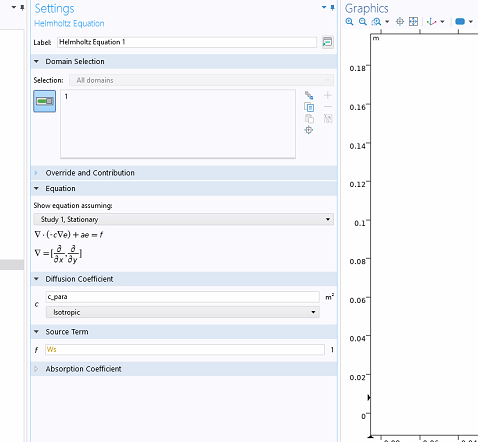

Hello, I am trying to simualte non local damage in hyper elatsic material, For this I am using Helmhotz equation , The source term is elatsic energy (Neo Hookean) which is defined in comsol itself. For using this energy as a source can i directly use one which is there, If yes, how? or should i define its expression in variable and then use that ?

Attachments:

1 Reply Last Post 14.03.2023, 02:26 GMT-4
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 year ago 14.03.2023, 02:26 GMT-4

You can use the built-in variable for the strain energy density, but you must use the full scope, like 'solid.Ws'.

-------------------
Henrik Sönnerlind
COMSOL
You can use the built-in variable for the strain energy density, but you must use the full scope, like 'solid.Ws'.
