How to generate random array
Posted 20.02.2023, 06:59 GMT-5 General, Geometry, Modeling Workflow Version 6.0 2 Replies
Please login with a confirmed email address before reporting spam
Hi,
I have a model that I would like to use the array command to generate same structure in the model. However, array command gives equal distances between the structures but I would like to place the structures randomly in the space. Any way to do that faster than placing one by one?
Thank you in advance
Please login with a confirmed email address before reporting spam
There are several possibilities.

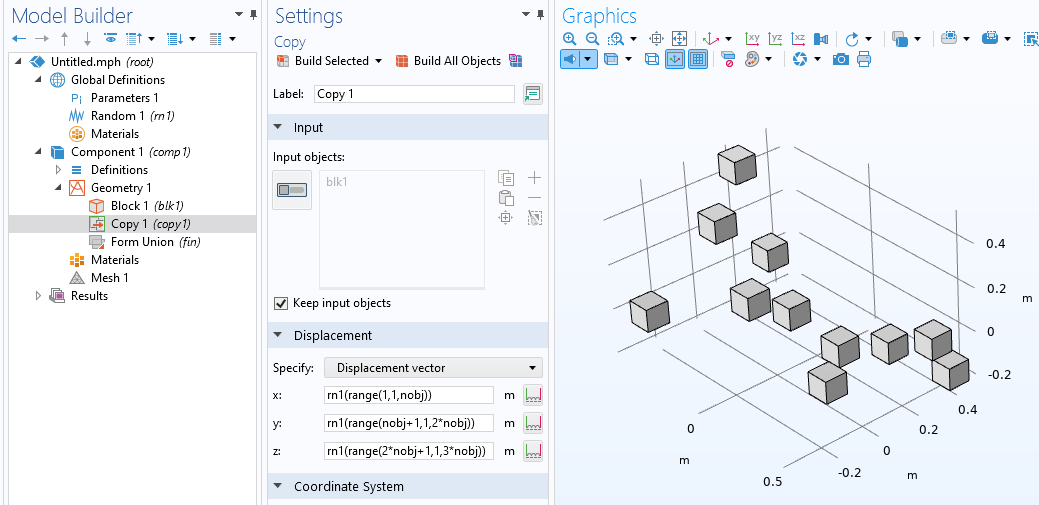

One, very lightweight method, is shown in the attached screenshot: Use a Copy node referencing a random function.
A more sophisticated variant, using a model method, is described in this blog post:
https://www.comsol.com/blogs/how-to-create-a-randomized-geometry-using-model-methods/
An important thing to consider, is whether it is a problem or not if the generated objects overlap.
-------------------Henrik Sönnerlind
COMSOL
Attachments:
Please login with a confirmed email address before reporting spam
There are several possibilities.
One, very lightweight method, is shown in the attached screenshot: Use a Copy node referencing a random function.
A more sophisticated variant, using a model method, is described in this blog post:
An important thing to consider, is whether it is a problem or not if the generated objects overlap.
thank you!
