Excitation of a dielectric waveguide in wave optics module.
Posted 03.01.2023, 23:22 GMT-5 Wave Optics Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam
Hello. I wanted to ask about excitation of a waveguide using numeric port in wave optics module. I have seen that while exciting, the core and cladding need to be selected as port boundaries. Why is that ? Does exciting only the core not result in guided wave ? How does COMSOL decide which is the core and which is the cladding and hence guide the wave properly?

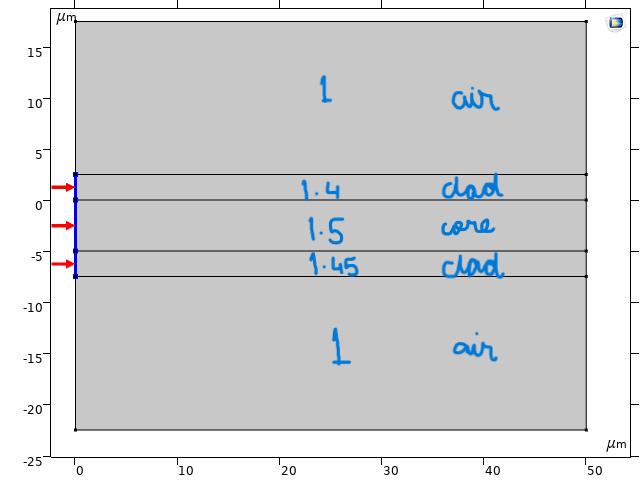

(I have attached an image describing the situation)
Thanks and Regards Gulzar
Attachments:
Hello GULZAR ALAM
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
