Far field plotting needs a very long time
Posted 04.05.2012, 13:40 GMT-4 RF & Microwave Engineering, Results & Visualization Version 4.2a 6 Replies
Please login with a confirmed email address before reporting spam
I'm trying to simulate a antenna over a ground plane with far field condition around, like it is in the examples.
The attached model works fine. But when I try to show the emw.normEfar on a surface, my computer utilize all cores with 100% (HP xw6600, 2xXeonE5450, 16GB). This is fine for some time. But after half an hour I canceled the process, because there is no cancel button at the GUI.
So I have two question:
First: Is there a mistake in my model or preferences?
And second: I lost some models on this way, because the emw.normEfar plot was the last active view when I saved. And COMSOL tries to recalculate, when I open it. Is there a way to prevent the recalculating, when COMSOL gets opened?
Thanks in advance
--
stefan
Attachments:
Please login with a confirmed email address before reporting spam
Also you can try increasing Java heap size (www.comsol.com/support/knowledgebase/830/) to speed up post-processing
Please login with a confirmed email address before reporting spam
Indeed the plot on demand helps for heavy models, but I can also confirm tha if you have a heavy model, then some of the calculations can take for ever, it happens quite often for my multiple parametric multiple integration Derived varales I try to generate.
And indeed there is no "stop" for these calculations, I have reported this once to support, an I hope they will add it in a future version, but if we are several to ask, sometimes it comes quicker ;)
On the other hand I have heared next release is for the end Mai or June it might already be there ;)
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
I have the same experience about far field calculation. However I found that calculation times get reasonable when you avoid 3D plots. If you just calculate the usual Azimuth and Elevation plots in polar coordinates you have normal postprocessing time demand.
The 3D plots are looking nice but what is mostly needed in antenna design are the polar plots.
Cheers
Edgar
Please login with a confirmed email address before reporting spam
Cheers
Edgar
Please login with a confirmed email address before reporting spam
Thank you for answers.
I found the option to disable the recalculation "Update plot when selected". And so I can open such models again. I increased the memory options for the VM.

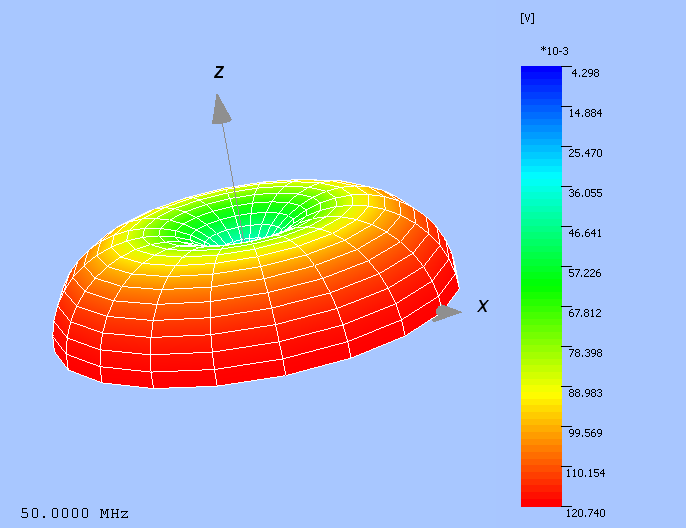

And about the 3D plot. I tried to recalculate results from a other simulation program, see attached picture. I want to compare the simulation of the both programs. And actually it should be same.
@Edgar: You are right my first idea was to set the port vertical between the antenna rod and the ground plane, like in the attached model. But then I get the errors from the solver. Is there anything missing or wrong?
Thanks so far
--
stefan
Attachments:
Please login with a confirmed email address before reporting spam
I think the port should rather be a horizontal piece that connects the vertical rod at its ground end and the ground plane.
Cheers
Edgar
