Problems using mphinterp for extracting Solid.Tn data.

Posted 18.10.2020, 01:23 GMT-4 Structural & Acoustics, Corrosion Processes, LiveLink for MATLAB Version 5.4 2 Replies

Yesenia Villamizar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

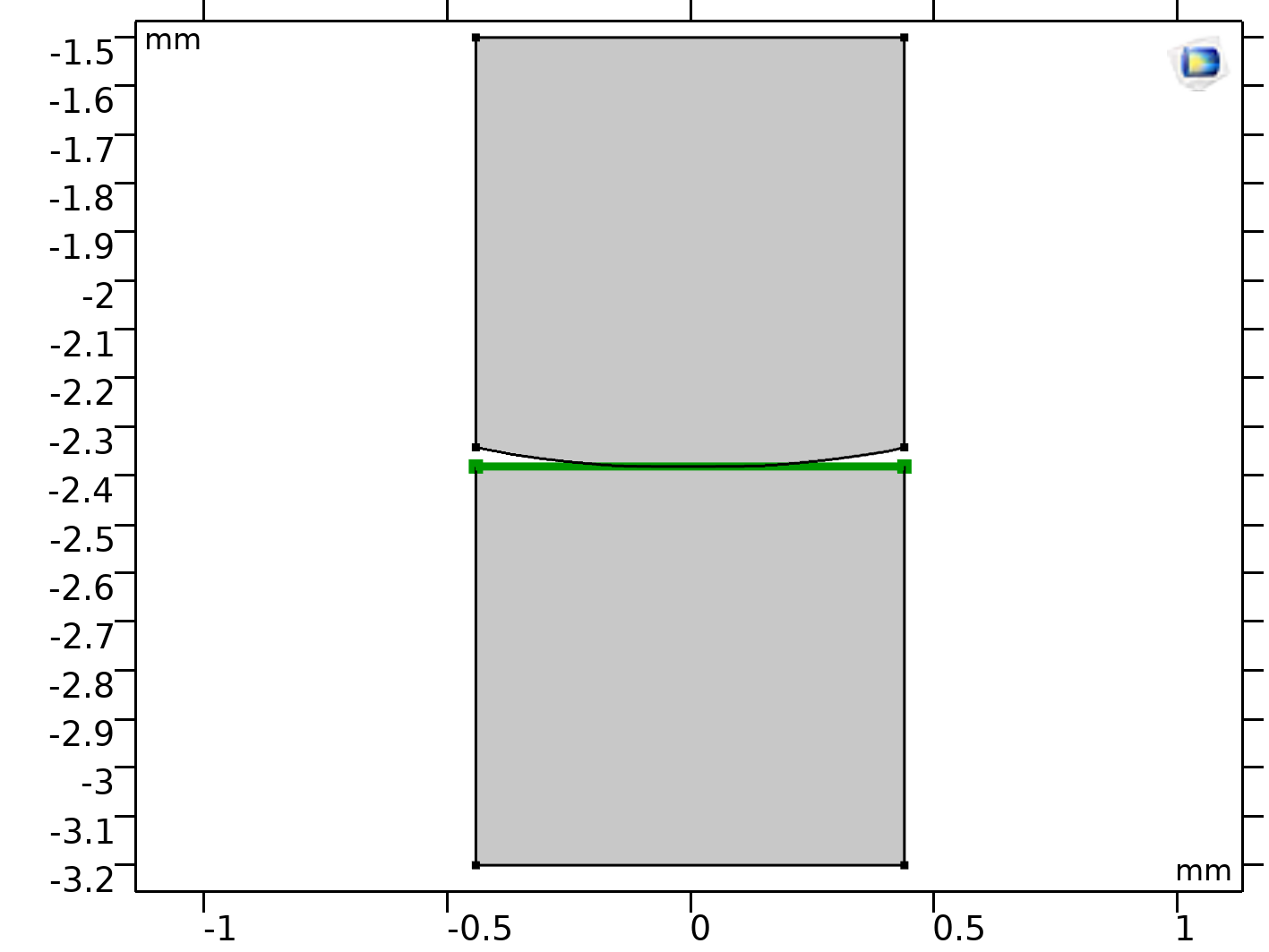

Hi.I'm modeling a contact problem between two surfaces in a 2d problem as shown in the attached figure. I cannot get the data because i got this error: "Wrong dimension of points searched for in postinterp." i use mph inter as shown below:

mphinterp(model,'solid.Tn','coord',nuevoxy,'edim','boundary','selection',4)

where nuevoxy is an array with the coordinates x and y of the points in the boundary where i wanna get this data.!

Attachments:

2 Replies Last Post 28.01.2021, 01:34 GMT-5
Lars Gregersen COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 20.10.2020, 09:42 GMT-4
Updated: 4 years ago 20.10.2020, 10:30 GMT-4

Hi Yesinia

Most likely you need to use nuevoxy' instead of nuevoxy. Coordinates in Comsol are columnwise.

Lars

-------------------
Lars Gregersen
Comsol Denmark
Hi Yesinia Most likely you need to use nuevoxy' instead of nuevoxy. Coordinates in Comsol are columnwise. Lars
Yesenia Villamizar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 28.01.2021, 01:34 GMT-5

Thank u Lars

Thank u Lars
