Help Beginner!

Please login with a confirmed email address before reporting spam

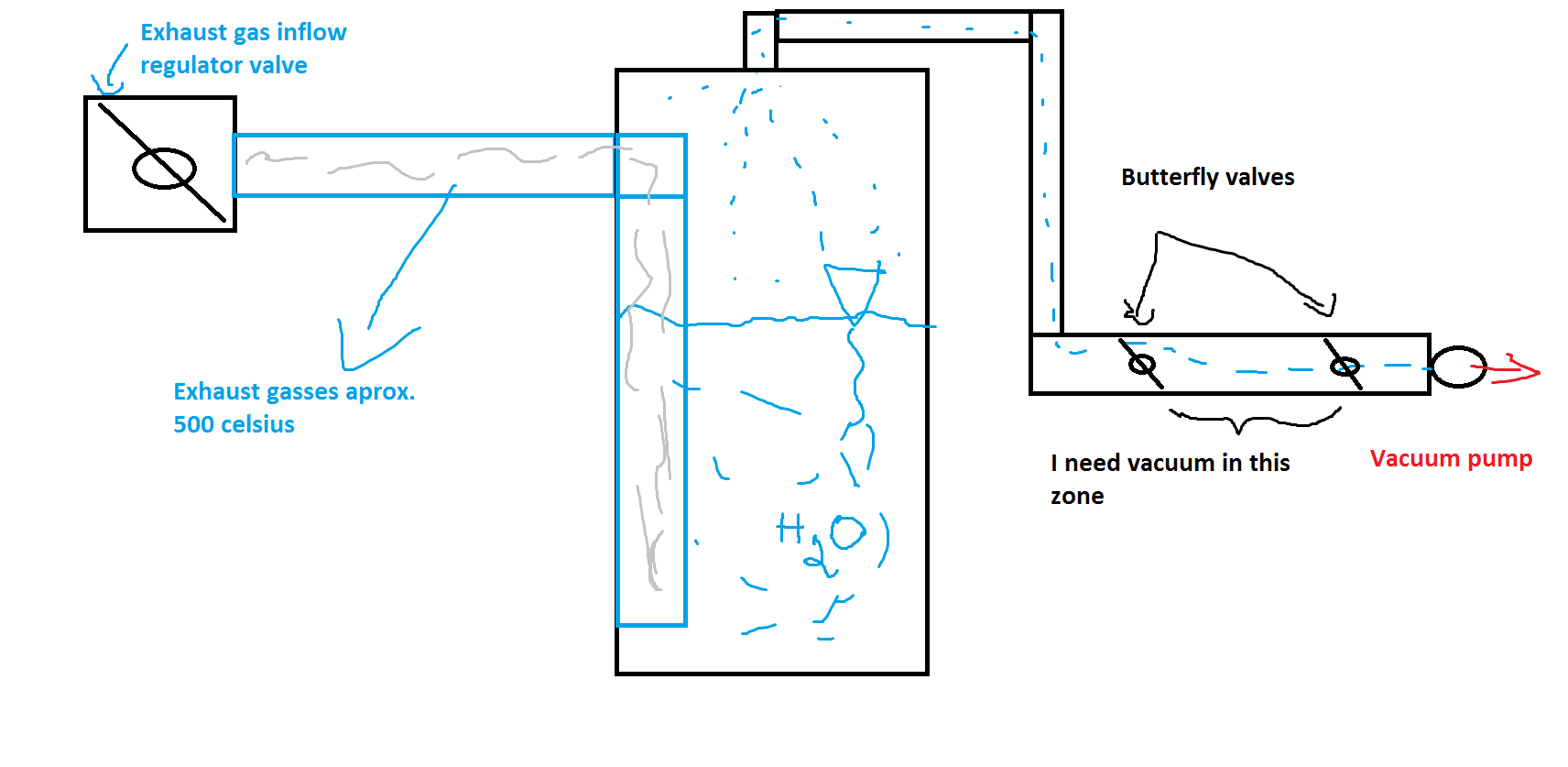

Hi guys I am a beginner and I use comsol for learning purposes. So, I would like to set up a simulation but I don't know how. I have a butterfly valve that controls the inflow of exhaust gases in a water tank(aprox. 5L but does not matter at the moment).My exhaust gases will heat up the water at it will start to boil. The water bubbles will start to flow out and are also helped by the vacuum pump sucking them out at the end. I would like to have vacuum inbetween the two butterfly valves but I really don't know how to set up the simulation.What type of flow and heat transfer should I use , does anyone have an idea? Thank you in advance.



0 Replies Last Post 02.04.2020, 04:07 GMT-4
COMSOL Moderator

Hello Levente Borbely

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
