Simulating wire through flat spiral coil
Posted 04.11.2019, 09:44 GMT-5 Electromagnetics, Low-Frequency Electromagnetics Version 5.1 4 Replies
Please login with a confirmed email address before reporting spam
Hello, I am a new comsol user and i have a problem regarding the simulation of wire with current through flat spiral coil. I begin with my geometry which is 3D. the physics that i use are currents and mef. I cannot understand how can i set the current that passes through the wire and i cannot find how i can measure the voltage from induction at the two ends of the coil. I am completely new to the software and i appreciate any help. thank you in advance.
Please login with a confirmed email address before reporting spam
Can you post your file? It will make it easier to offer a suggestion.
Please login with a confirmed email address before reporting spam

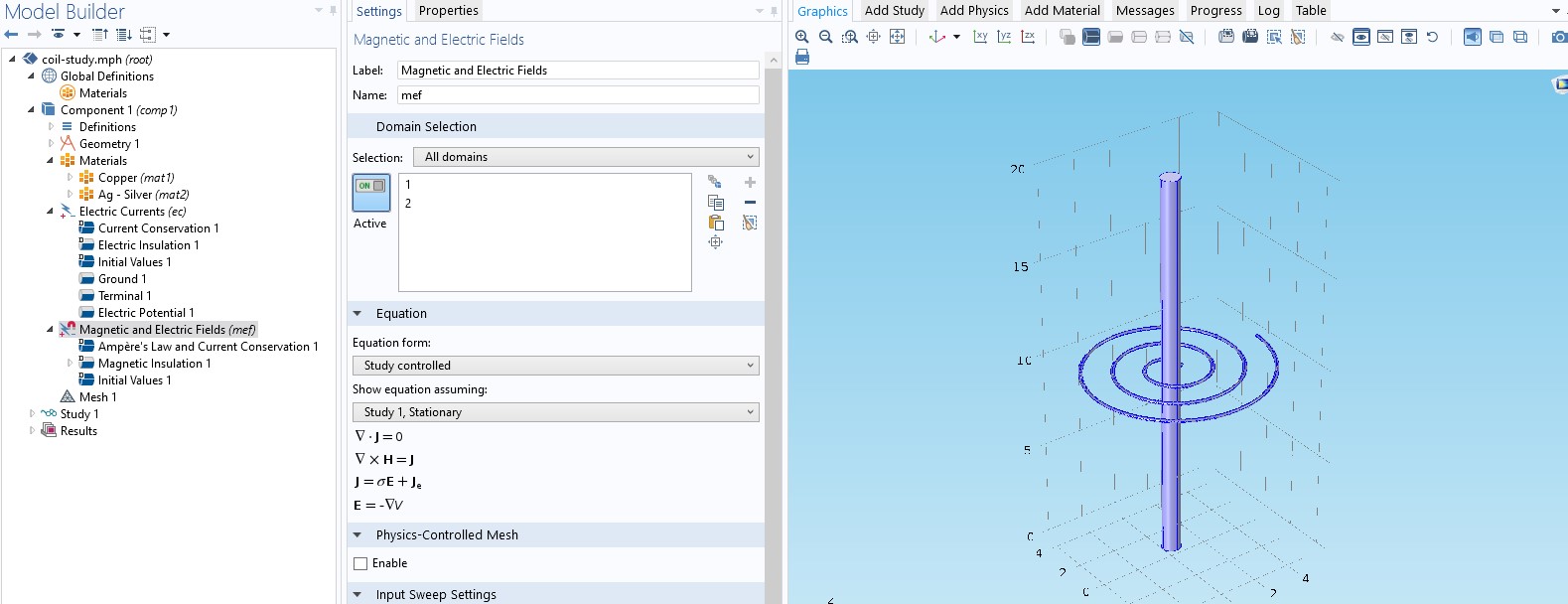

hello, because i work on my school's computer i cannot take the file with me but i can provide a screenshot from my work. i cannot find how to measure induced voltage at the coil when current passes through the wire. Thank you
Attachments:
Please login with a confirmed email address before reporting spam
Panos,
It looks like you don't have an air domain around the metal parts. You may also consider to realize this in mf and use coils. Check application library examples and the documentation.
Cheers Edgar
-------------------Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Please login with a confirmed email address before reporting spam
Hi Edgar, i realised that with the air domain and i added it. But still i cannot find a way to measure induced voltage in my coil. Thank you for your time.
