Arnoldi iterations error

Sai Rakesh Vangapandu

Please login with a confirmed email address before reporting spam

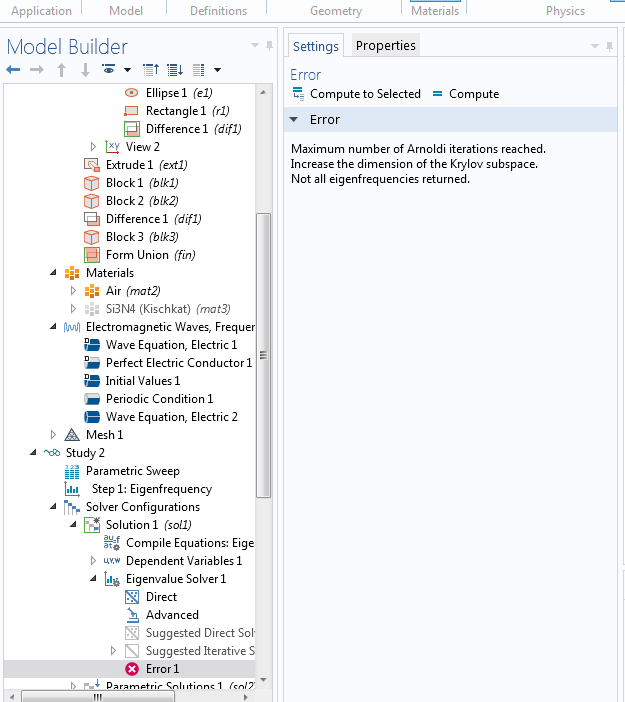

Hi, I am running a photonic crystal simulation in COMSOL. The goal of the simulation is to find the eigen frequencies at different possible K vector (vector defining the floquet periodicity in my structure). The simulation sweeps K from 0 to 1 but I get this error "that maximum number of arnoldi iterations are reached, Increase the dimenison of Krylov subspace. Not all eigen frequencies are returned" and it doesnot proceed until K=1 calculation and stops at K=0.97. Can someone help me understand why this error occurs and how to resolve it?



0 Replies Last Post 04.04.2019, 21:04 GMT-4
COMSOL Moderator

Hello Sai Rakesh Vangapandu

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
