constraints in structural module

Posted 20.11.2018, 20:57 GMT-5 Structural & Acoustics Version 5.3 1 Reply

DoWon Heo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi

I try to apply constrint in structural module

I make rectengular shaped model in 2D and applied the prescribed displacement.

and I want to stop when the stress or reaction force reached specific value.

how can I impose the constraints?

thankt you

1 Reply Last Post 23.11.2018, 11:14 GMT-5
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 23.11.2018, 11:14 GMT-5

Hi,

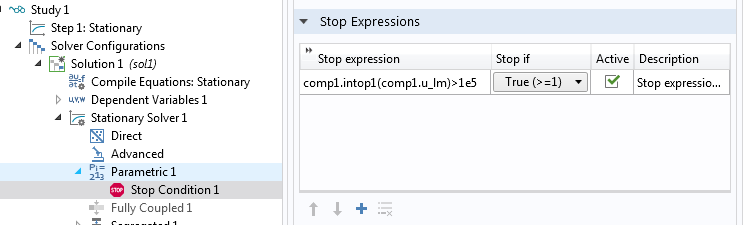

If you want to terminate an analysis once a certain value is reached, you can add a Stop Condition node under the Parametric node in the solver sequence. As stop expression you can use any global value, for example computed by a max or integration operator.

Regards,
Henrik

-------------------
Henrik Sönnerlind
COMSOL
Hi, If you want to terminate an analysis once a certain value is reached, you can add a **Stop Condition** node under the **Parametric** node in the solver sequence. As stop expression you can use any global value, for example computed by a max or integration operator. Regards, Henrik
