Boundary problem deformation in structural mechanics
Posted 04.12.2009, 02:27 GMT-5 3 Replies
Please login with a confirmed email address before reporting spam
Hello,
i have some problems to simulate the thermal expansion of a hollow sphere. i would like to simulate the thermal expansion (deformation) of a heated (500 K) hollow sphere in 3D. My problem is how can i simulate the increased inner radius of the sphere. I would like to simulate the "new" radius measured from the centre of the shpere. i have no idea to set a boundary like fixed on the centre of the sphere because there is no material. So it is difficult for me to set the boundary conditions correctly. i would like to simulate the fraction of the inner radius of the hollow sphere to the new inner radius at higher temperature. Thank you for any help of this problem.
best regards,
stephan
i have some problems to simulate the thermal expansion of a hollow sphere. i would like to simulate the thermal expansion (deformation) of a heated (500 K) hollow sphere in 3D. My problem is how can i simulate the increased inner radius of the sphere. I would like to simulate the "new" radius measured from the centre of the shpere. i have no idea to set a boundary like fixed on the centre of the sphere because there is no material. So it is difficult for me to set the boundary conditions correctly. i would like to simulate the fraction of the inner radius of the hollow sphere to the new inner radius at higher temperature. Thank you for any help of this problem.
best regards,
stephan
3 Replies Last Post 21.12.2009, 08:51 GMT-5
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
I believe you have several ways to get there, and I would propose that you check at least two to be sure its correct.
1) why not by brute force make an 3D hollow sphere shell, set a 500°C temperature change in the subdomain properties and select the full inner surface of area "Area" calculated by hand or via an boundary integration and estimate the postprocessing boundary integration of int(sqrt(u^2+v^2+w^2)/Area, dx,dy,dz), this is the average radial expansion, and you average out any first order non-uniform meshing that might displace the centre of the sphere (as its not supported) note: r=sqrt(x^2+y^2+z^2) and delta_r=sqrt(u^2+v^2+w^2), or int(delta_r^2,dx,dy,dz)/Area over the inner surface is the rms deformation of your shell
2) you use 3 symmetry conditions to calculate only a 1/8 of a sphere shell, this would force the shell to expand symmetrically from"0,0,0" ad allow for finer mesh for the same RAM and time calculation.
3) or you say this is really a 1D problem in spherical coordinates and you "simply" reformulate your physics and solve it as a 1D problem (check the knowledge base for the spherical symmetry transformation)
up to you, have fun
Ivar
I believe you have several ways to get there, and I would propose that you check at least two to be sure its correct.
1) why not by brute force make an 3D hollow sphere shell, set a 500°C temperature change in the subdomain properties and select the full inner surface of area "Area" calculated by hand or via an boundary integration and estimate the postprocessing boundary integration of int(sqrt(u^2+v^2+w^2)/Area, dx,dy,dz), this is the average radial expansion, and you average out any first order non-uniform meshing that might displace the centre of the sphere (as its not supported) note: r=sqrt(x^2+y^2+z^2) and delta_r=sqrt(u^2+v^2+w^2), or int(delta_r^2,dx,dy,dz)/Area over the inner surface is the rms deformation of your shell
2) you use 3 symmetry conditions to calculate only a 1/8 of a sphere shell, this would force the shell to expand symmetrically from"0,0,0" ad allow for finer mesh for the same RAM and time calculation.
3) or you say this is really a 1D problem in spherical coordinates and you "simply" reformulate your physics and solve it as a 1D problem (check the knowledge base for the spherical symmetry transformation)
up to you, have fun
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi Ivar,

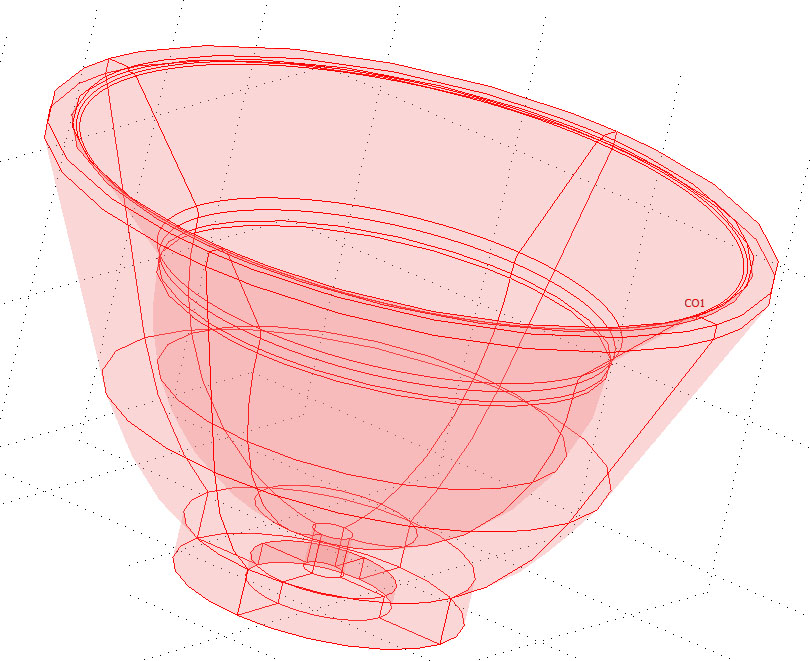

thanks a lot for your help. I hope i can use your ways to get a solution. But my geometry is not such a hollow sphere but rather a half open hollow sphere. Do you think it is possible to use some of your ideas anyway? And i need the the solution/modelling implicitly in 3d. enclosed i have attached a picture of the geometry i think it helps you.
