Particle Trajectories 3D Mirror plot

Posted 29.06.2018, 04:22 GMT-4 Computational Fluid Dynamics (CFD), Particle Tracing for Fluid Flow Version 5.3a 1 Reply

Summer Kochersperger
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

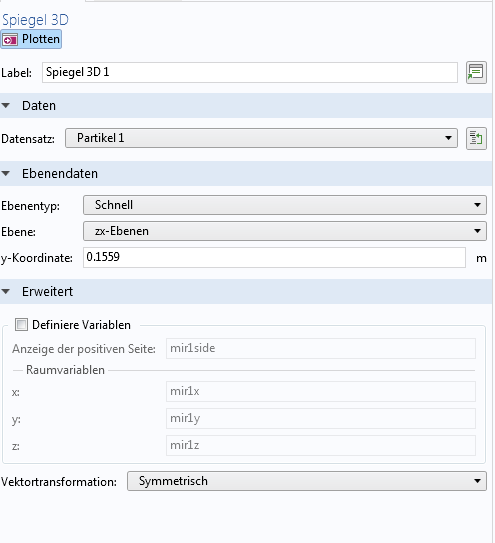

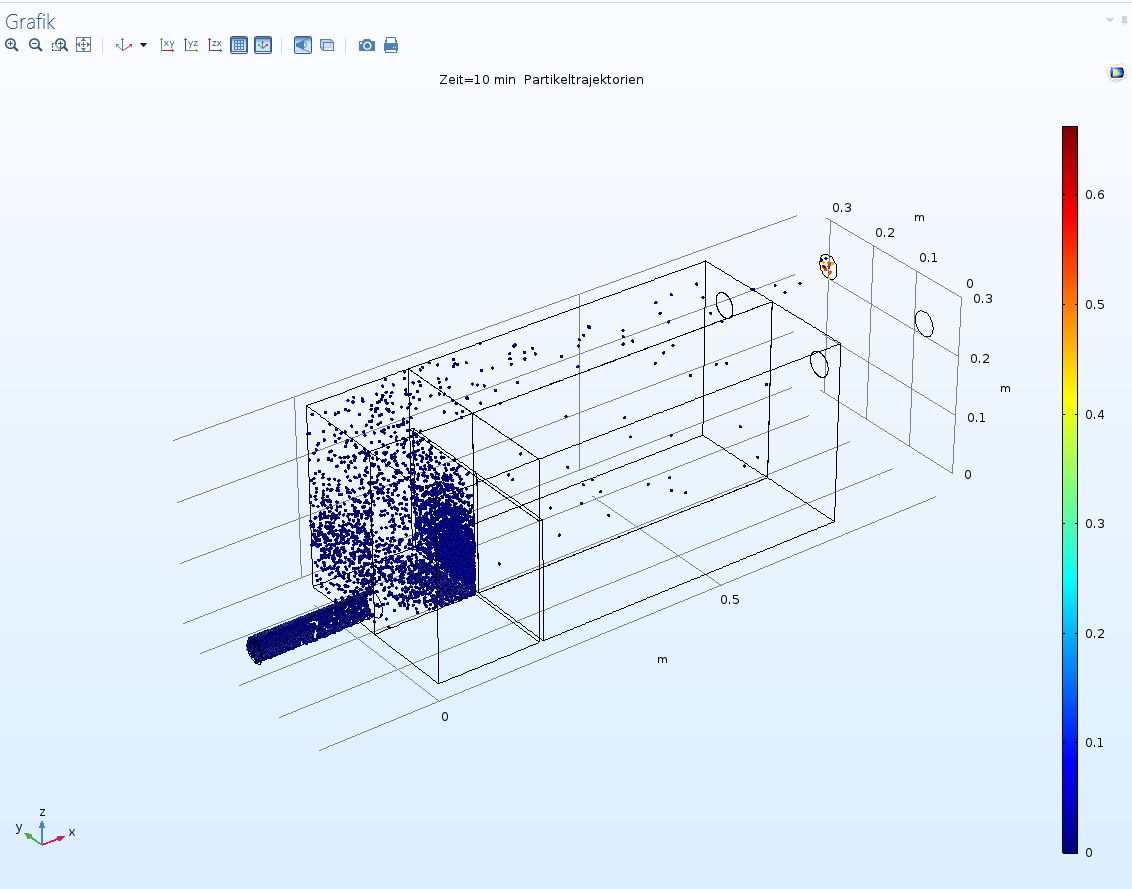

I have successfully plotted particle trajectories in 3D and I would like to mirror the results using the Mirror Plot 3D function, however when I do this only the geometry gets mirrored but not the particle trajectories as well. I have included some screenshots below to clarify the situation.

1 Reply Last Post 29.06.2018, 08:26 GMT-4
Daniel Smith COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 29.06.2018, 08:26 GMT-4

Dear Summer, the mirror data set does not support particle trajectory plots. However, you can use the trick in the attached model to accomplish the same thing. It basically involves a second Particle data set which flips the sign of the y-component of the particle position.

Dan

Dear Summer, the mirror data set does not support particle trajectory plots. However, you can use the trick in the attached model to accomplish the same thing. It basically involves a second Particle data set which flips the sign of the y-component of the particle position. Dan

Attachments:
