Permanent magnet orientation

Please login with a confirmed email address before reporting spam

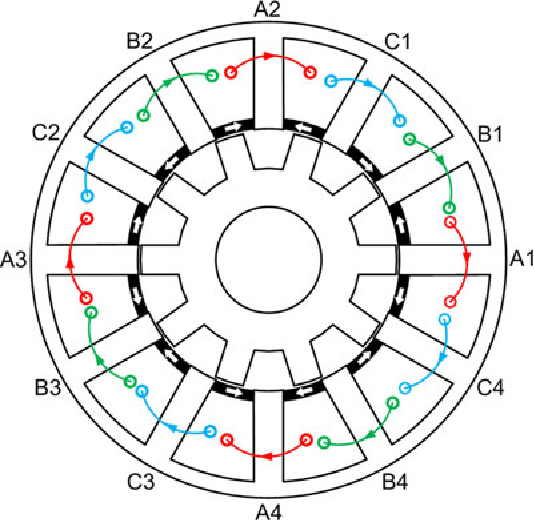

Hello, I'm modeling a Permanent Magnet Machine, and I want to change the orientation of the magnets to have the same orientation as in the figure that is attached, anyone could help me?

Regards, João Oliveira



2 Replies Last Post 11.05.2018, 04:48 GMT-4
Nirmal Paudel Tribhuvan University/Electrical Engineering

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 10.05.2018, 16:25 GMT-4

Hi,

The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/

Best Regards, Nirmal

Hi, The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/ Best Regards, Nirmal

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 11.05.2018, 04:48 GMT-4

Hi,

The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/

Best Regards, Nirmal

Hi Nirmal, Thanks for your reply, now I got it.

Best regards João Oliveira
