Port and Unit cell

Please login with a confirmed email address before reporting spam

Hi all,

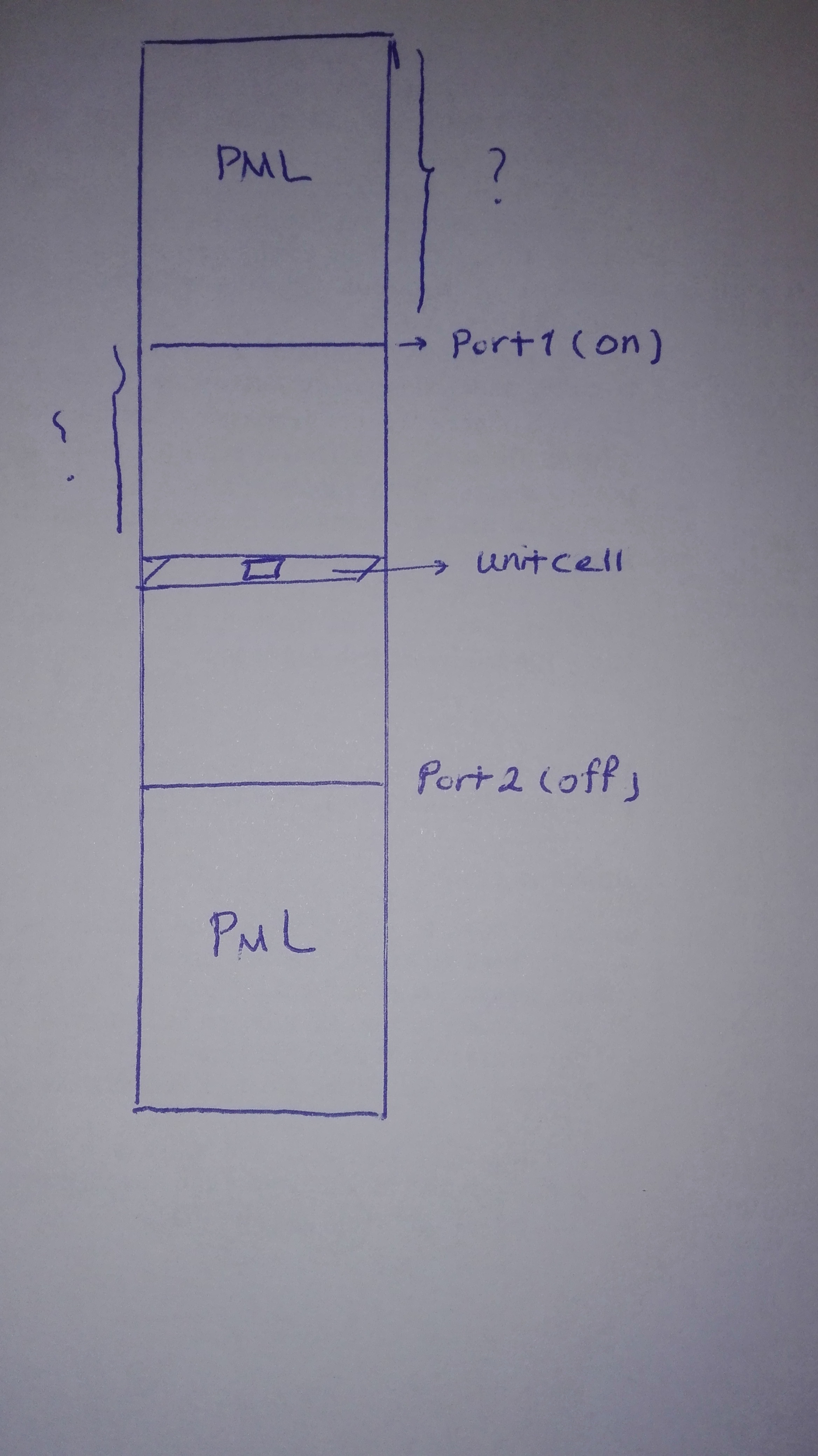

What is the optimum distance between port and unit cell? Is there any rule of thumb for that? should it be symmetry? I mean can I increase the distance between unit cell and port 2 (off)? Moreover, what is the optimum height for PML layers? I've attached a picture for better understanding.

Many thanks



0 Replies Last Post 27.03.2018, 16:53 GMT-4
COMSOL Moderator

Hello Sherry

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
