Ray Optics - Intensity on a plane - Source and Collimator
Posted 02.11.2017, 08:36 GMT-4 Ray Optics Version 5.2a 0 Replies
Please login with a confirmed email address before reporting spam
hello,

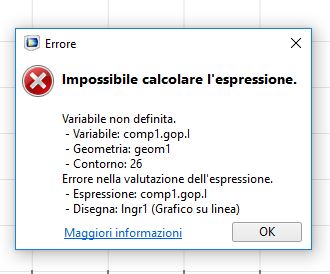

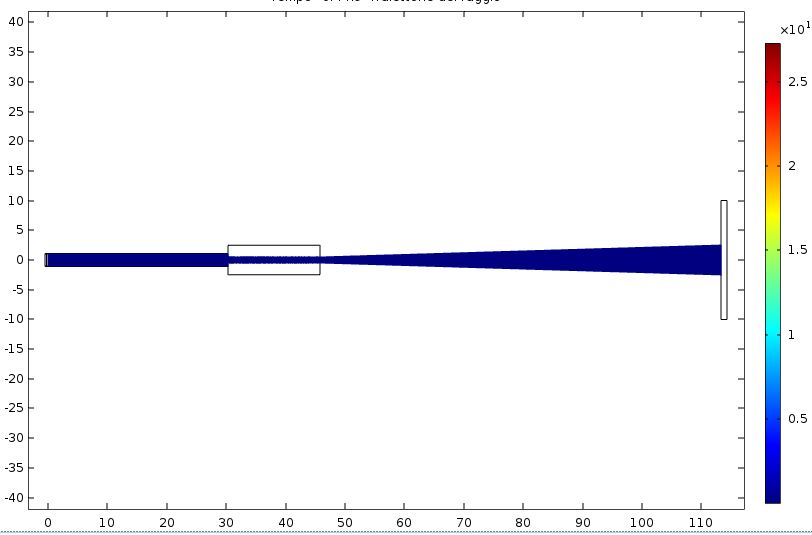

I'm trying to perform a simply simulation of a source + collimator (made of two rectangular boxes with "Freeze" condition) and evaluate with the Ray Optics the intensity on a plane. The model was made in 2D, os I added a 1D plot to the results, following this instructions "https://www.comsol.com/video/simulating-ray-optics-with-comsol-multiphysics" but appears a Dialog Error Box in which says that the variable is not defined (comp1.gop.I).
I attached my comsol file, hoping that someone could help.
Attachments:
Hello SimonG
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
