Magnetic Flux Density (Rotating Machinery)
Posted 25.08.2017, 07:35 GMT-4 Low-Frequency Electromagnetics, Results & Visualization Version 5.2 0 Replies
Please login with a confirmed email address before reporting spam

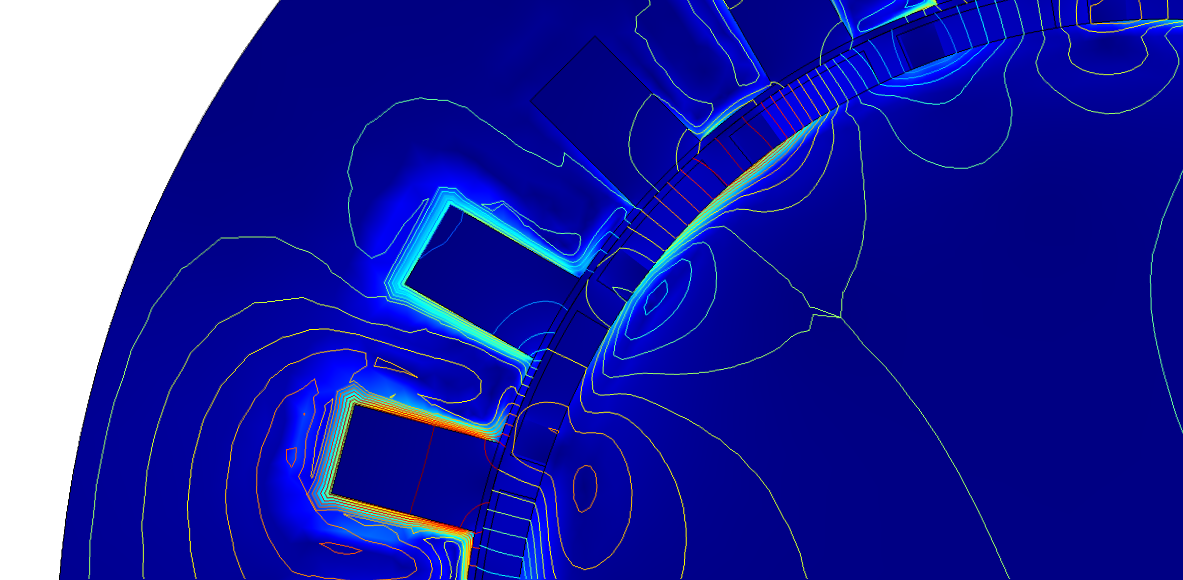

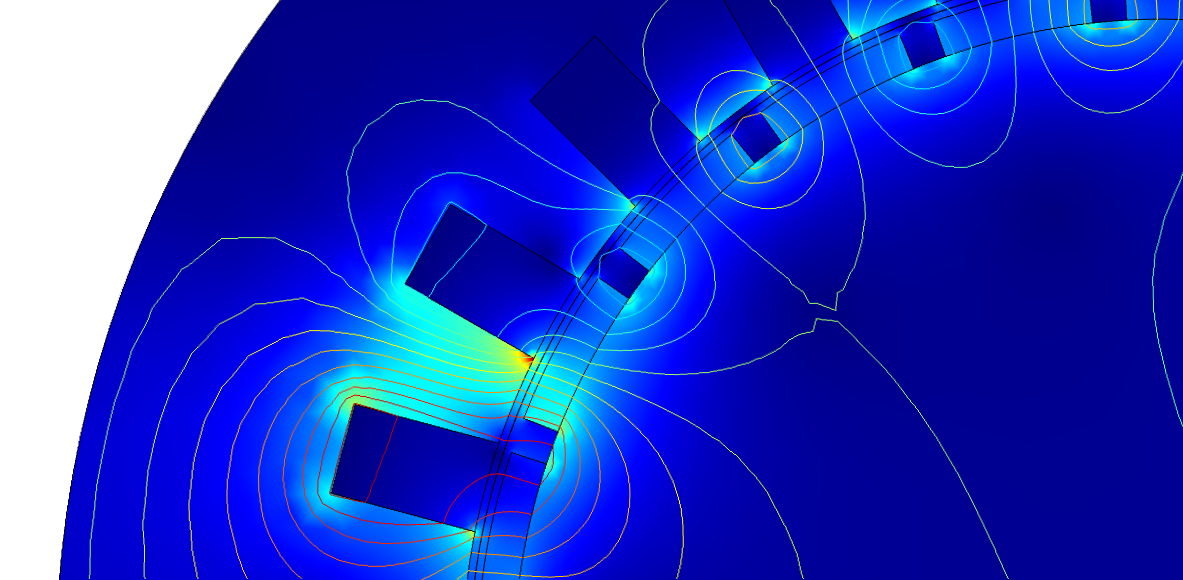

I have problem with the visualization of my results in comsol. I modeled a machine with concentrated windings. The calculated torque seems to be ok, but the field lines of the magnetic field showing a strange behavior. I use the stationary and time dependent study for calculation. The first time step ( 0 s) gives me the correct solution of the magnetic field, but all the other solutions are wrong. Maybe some can help me. I attach a picture and the .mph file.
