Moving mesh ALE

Posted 27.07.2017, 12:20 GMT-4 Low-Frequency Electromagnetics Version 5.2 0 Replies

Mehdi Attar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello everyone

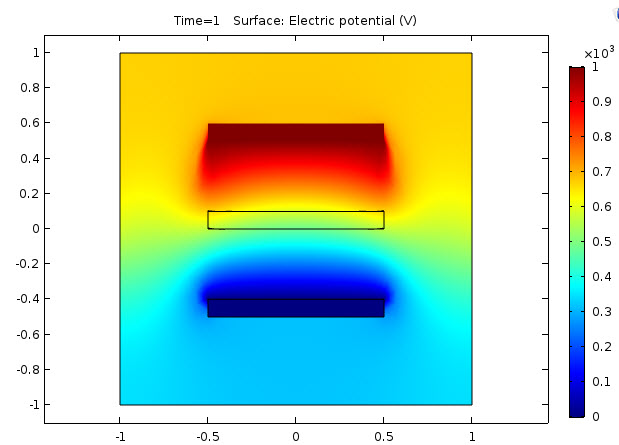

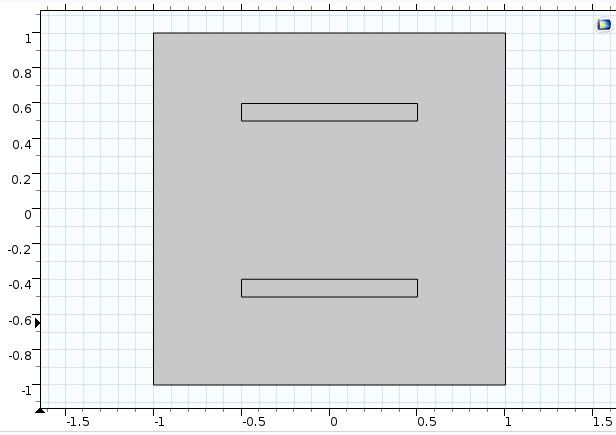

I am beginner at COMSOL. I am trying to simulate electric filed in presence of 2 contacts. A movable contact and a fixed contact. The fixed contact is grounded and the a electric potential is applied to the moving contact. I have used Moving Mesh ALE to move the movable contact. I face a problem. Domain of moving contacts move truly according to the ALE settings but the material do not move! I have attached two related images as well.

Thanks for your response.

Matt

Attachments:

0 Replies Last Post 27.07.2017, 12:20 GMT-4
COMSOL Moderator

Hello Mehdi Attar

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
