External geometry function

Posted 19.10.2016, 13:31 GMT-4 Interfacing, Geometry 5 Replies

Priyanka Agrawal
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

How to add geometry as a sine function (which is not a defined tag like r1 - rectangle in COMSOL) through Matlab?
5 Replies Last Post 27.10.2016, 08:52 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 19.10.2016, 14:52 GMT-4
You really don't need to use MATLAB for that: a "parametric curve" can do that for you in the GUI. Now, if you want to know what the MATLAB code for it is, do it in the GUI and save as an m file, as always.
Jeff
You really don't need to use MATLAB for that: a "parametric curve" can do that for you in the GUI. Now, if you want to know what the MATLAB code for it is, do it in the GUI and save as an m file, as always. Jeff
Priyanka Agrawal
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 20.10.2016, 13:24 GMT-4
Thanks Jeff. Its pretty good :)
Thanks Jeff. Its pretty good :)
Priyanka Agrawal
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 27.10.2016, 05:41 GMT-4
Hi,

After creating geometry using parametric curve, I built union to make a close geometry from 2 parametric curves and 2 lines. I am not able to select this geometry boundaries in laminar flow physics. I am also attaching the input file. Please help.

Thanks
Priyanka
Hi, After creating geometry using parametric curve, I built union to make a close geometry from 2 parametric curves and 2 lines. I am not able to select this geometry boundaries in laminar flow physics. I am also attaching the input file. Please help. Thanks Priyanka

Attachments:

Sergei Yushanov Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 27.10.2016, 08:50 GMT-4
Priyanka,

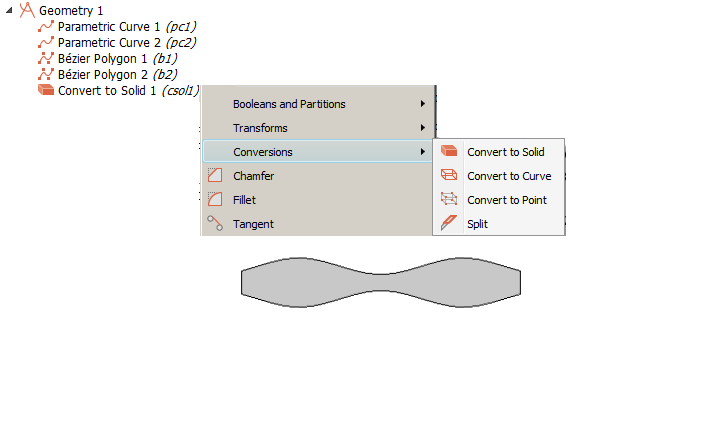

Use Conversions/Convert to Solid option, as shown in the attached image.

Regards,
Sergei
Priyanka, Use Conversions/Convert to Solid option, as shown in the attached image. Regards, Sergei

Attachments:

Priyanka Agrawal
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 27.10.2016, 08:52 GMT-4
Thanks Sergei.
Thanks Sergei.
