hexagon shape

Posted 23.09.2016, 01:52 GMT-4 Wave Optics 1 Reply

Poonguzhali Narendran
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

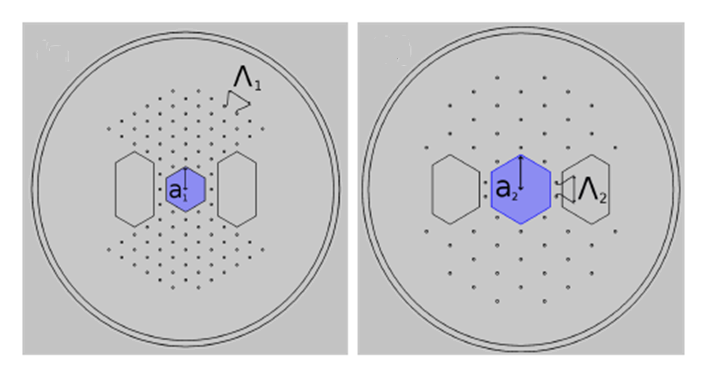

I'm using COMSOL 4.4 version. I want to insert the hexagon shape in photonic crystal fiber. I don't know how to draw the hexagon shape. Please guide me with necessary steps. Herewith i have attached my structure. Kindly help me.

Attachments:

1 Reply Last Post 26.09.2016, 11:01 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 26.09.2016, 11:01 GMT-4
Hello Poonguzhali,
There are more elegant ways of drawing regular polygons in COMSOL, but the approached presented by Magnus in this thread will work:
www.comsol.com/community/forums/general/thread/35398
Best,
Jeff
Hello Poonguzhali, There are more elegant ways of drawing regular polygons in COMSOL, but the approached presented by Magnus in this thread will work: https://www.comsol.com/community/forums/general/thread/35398 Best, Jeff
