Empty/incomplete solution-only edges of simulated part get displayed
Posted 14.08.2016, 06:47 GMT-4 Low-Frequency Electromagnetics, Results & Visualization Version 5.2 2 Replies
Please login with a confirmed email address before reporting spam
Dear all,
I need urgent help for my current project simulating polymer-bonded magnets. I'm using COMSOL 5.2.

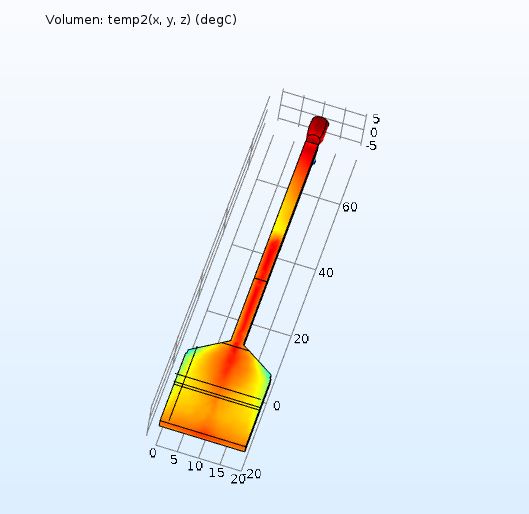

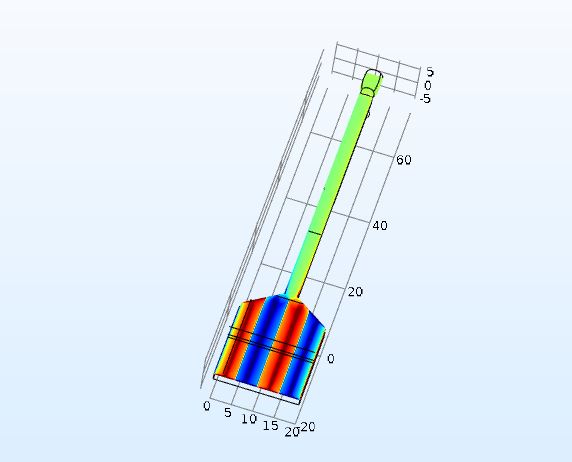

So far I generated two modells with different geometries. In my first modell (20x20x1_1.0s) I'm able to plot the solutions properly (temperatur plot/Plot flux density (BT entformt).

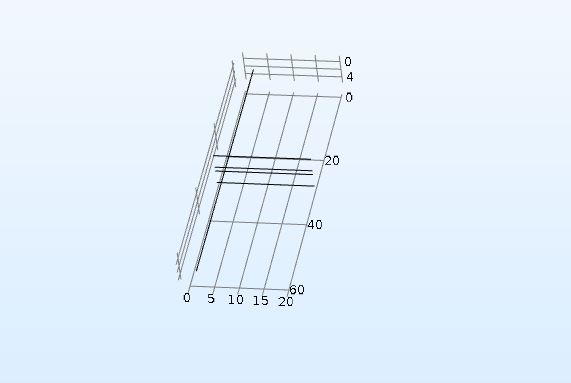

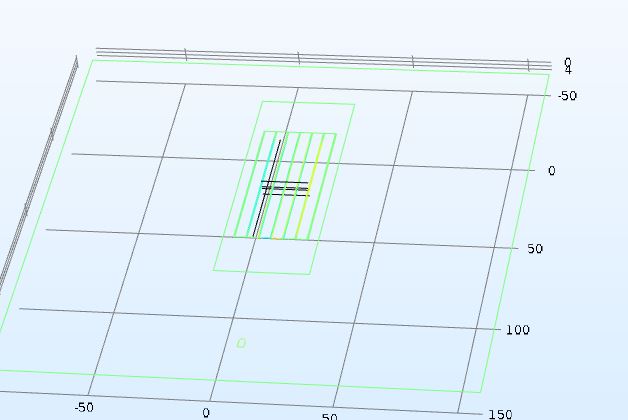

This modell I used a basis to generate my second modell with a slightly different geometry (20x60x1_1.5s). I used exactly the same settings but for some reasons I'm unable to plot/calculate the solutions (temperatur plot_new modell/Plot flux density (BT entformt)_new modell) like they showed up in the first modell. It seems that only the edges are displayed but not the whole part.
I can't find my mistake! It would be great if someone could help me....
Thank you very much!
I need urgent help for my current project simulating polymer-bonded magnets. I'm using COMSOL 5.2.
So far I generated two modells with different geometries. In my first modell (20x20x1_1.0s) I'm able to plot the solutions properly (temperatur plot/Plot flux density (BT entformt).
This modell I used a basis to generate my second modell with a slightly different geometry (20x60x1_1.5s). I used exactly the same settings but for some reasons I'm unable to plot/calculate the solutions (temperatur plot_new modell/Plot flux density (BT entformt)_new modell) like they showed up in the first modell. It seems that only the edges are displayed but not the whole part.
I can't find my mistake! It would be great if someone could help me....
Thank you very much!
Attachments:
2 Replies Last Post 16.08.2016, 11:05 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
Maximilan,
You can not see all geometrical entities in you plots because several domains are hidden - take a look at Component/Definitions/View node.
Regards,
Sergei
You can not see all geometrical entities in you plots because several domains are hidden - take a look at Component/Definitions/View node.
Regards,
Sergei
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
Sergei!! You are my hero right now!
Thank you so much....I have no idea how I could overlook this
Best wishes,
Maximilian
Thank you so much....I have no idea how I could overlook this
Best wishes,
Maximilian
