How to build a Wavy wall using "COMSOL Geometry "

Posted 22.05.2016, 03:12 GMT-4 Heat Transfer & Phase Change, Geometry Version 4.4, Version 5.0 6 Replies

Shantanu Datta
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear All
I am pretty new to COMSOL and I am working on Natural Convection In Cavities which is having either one wall or multiple wall having a simple Sinusoidal wavy profile or which might be having an equation .

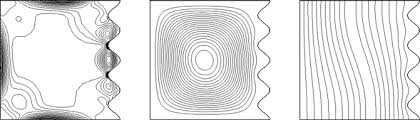

I am attaching a sketch of a square cavity with a wavy wall for All for better understanding.
Does any body know how to build this by using COMSOL Geometry?
Thanks in Advance

Attachments:

6 Replies Last Post 24.05.2016, 09:59 GMT-4
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 23.05.2016, 06:40 GMT-4
How about this? 3D model, a work plane at z = 0.

1. Draw a parametric curve:
parameter s
xw = s
yw = 0.001*sin(10*pi*s) + 0.002

2. Draw an open polygon:
xw = {0, 0, 0.1, 0.1}
yw = {0.002, 0.1, 0.1, 0.002}

3. Convert to solid:
Input objects are these two curves.

4. Extrude workplane by 0.01 m.

Done.


BR
Lasse
How about this? 3D model, a work plane at z = 0. 1. Draw a parametric curve: parameter s xw = s yw = 0.001*sin(10*pi*s) + 0.002 2. Draw an open polygon: xw = {0, 0, 0.1, 0.1} yw = {0.002, 0.1, 0.1, 0.002} 3. Convert to solid: Input objects are these two curves. 4. Extrude workplane by 0.01 m. Done. BR Lasse

Attachments:

Shantanu Datta
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 23.05.2016, 14:37 GMT-4

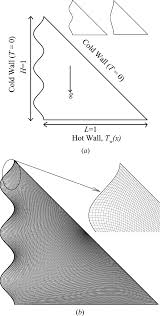

THANK YOU SO MUCH!!! CAN I MODEL A TRIANGULAR ENCLOSURE(fig attached) By this same method?
THANK YOU SO MUCH!!! CAN I MODEL A TRIANGULAR ENCLOSURE(fig attached) By this same method?

Attachments:

Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 23.05.2016, 15:02 GMT-4
Of course, just replace polygon with an open triangle.

Br
Lasse
Of course, just replace polygon with an open triangle. Br Lasse
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 23.05.2016, 15:29 GMT-4
Like this. Note also fillets.

Lasse
Like this. Note also fillets. Lasse

Attachments:

Shantanu Datta
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 24.05.2016, 07:39 GMT-4
THANKS SO MUCH!!! > BUT IF I WANT TO DO IT BY 2-D THEN DO I FOLLOW THE SAME PROCEDURE?
THANKS SO MUCH!!! > BUT IF I WANT TO DO IT BY 2-D THEN DO I FOLLOW THE SAME PROCEDURE?
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 24.05.2016, 09:59 GMT-4
Sure.
Sure.
